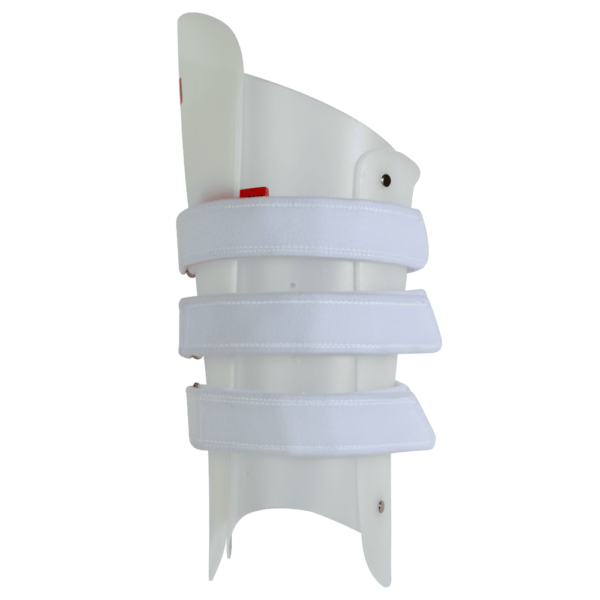

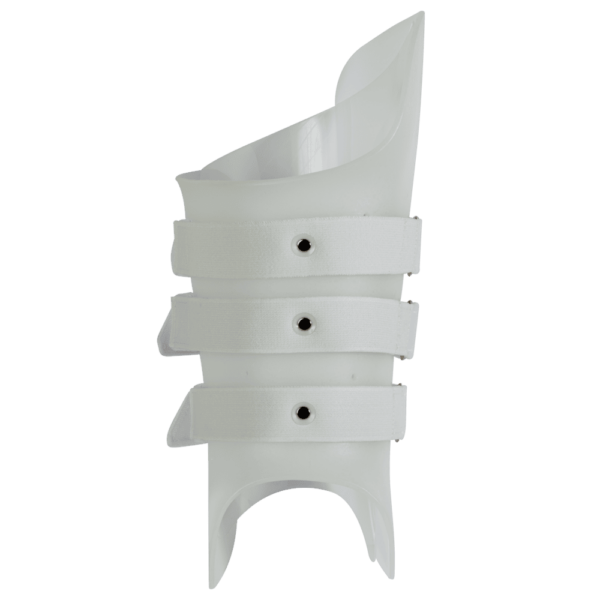

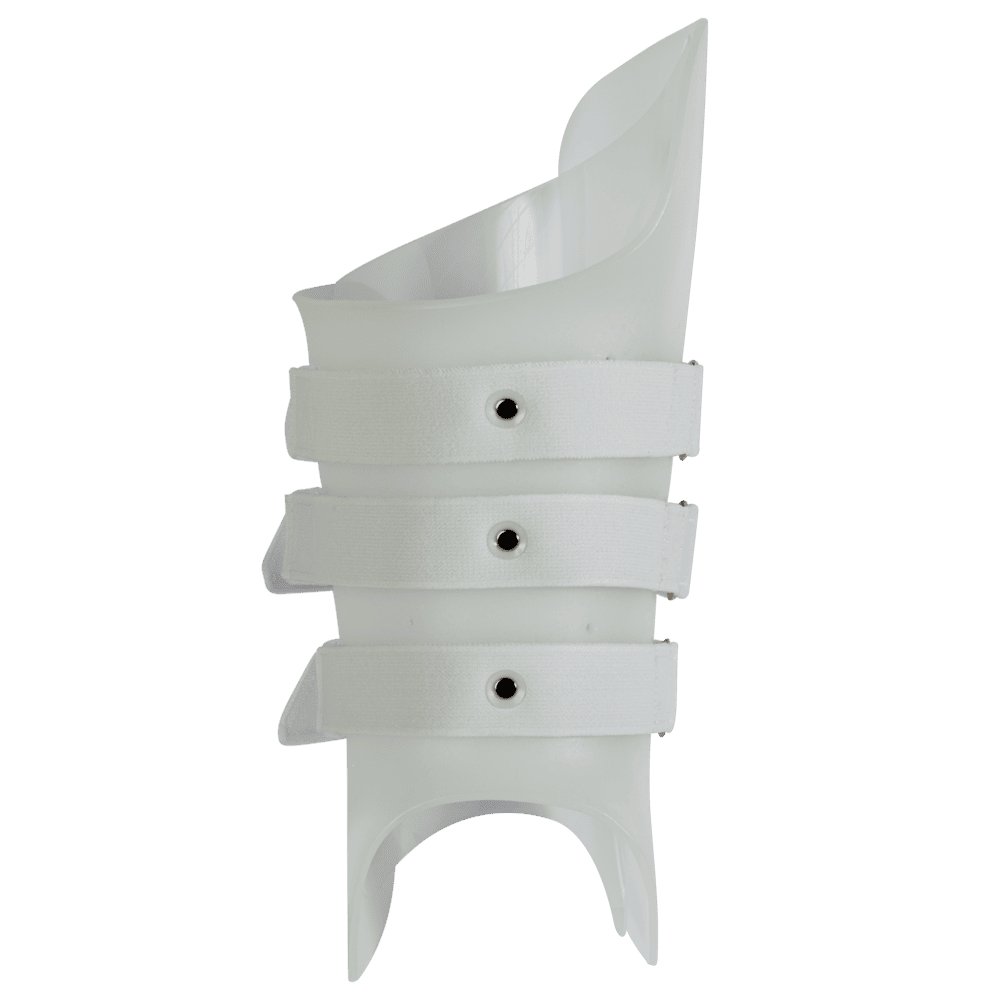

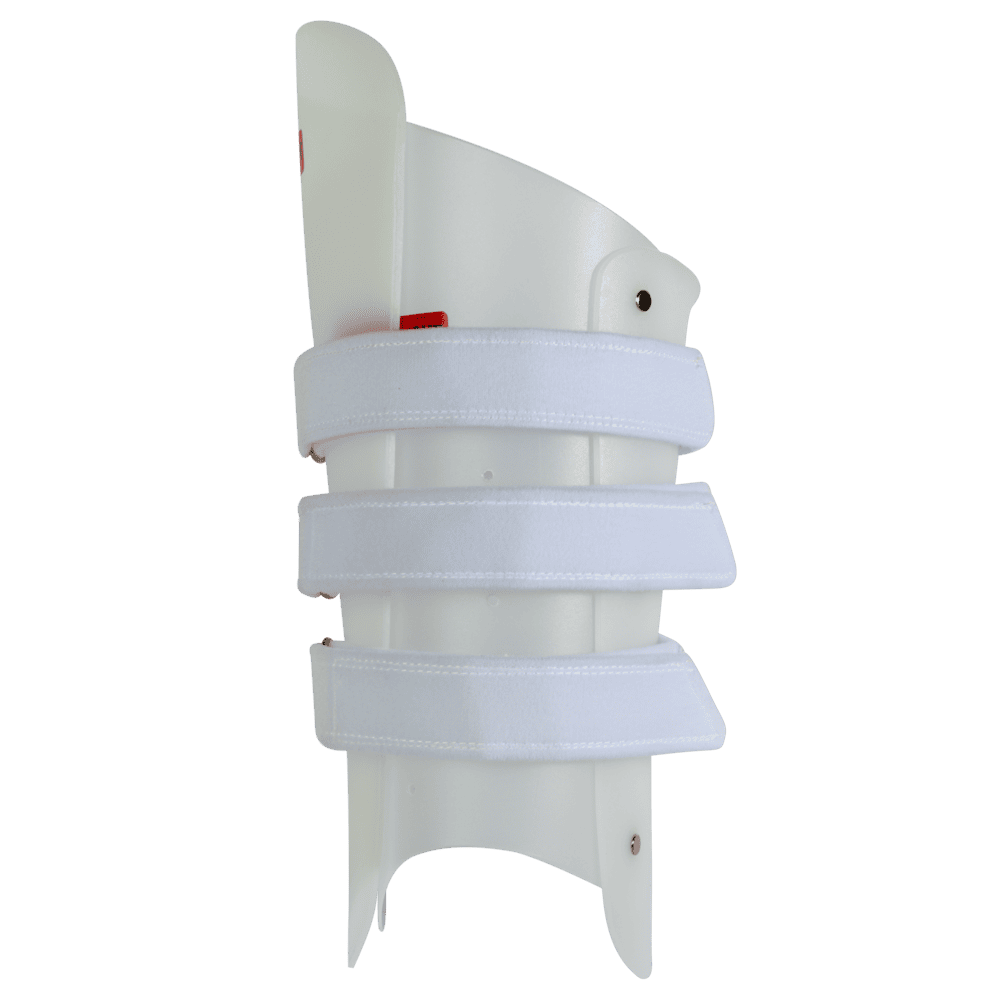

This narrow ML thigh section is unassembled for femoral shaft fractures and proximal tibial fractures requiring a long-leg orthosis. The longer A-P design is more anatomical, provides increased comfort and adjustability. The distal end easily trimmed to the desired length and the anterior opening enhances application. Hardware is included for attachment of any type of knee joints. This is specifically designed to be used with Orthomerica’s tibial section.
• Narrow M-L / natural shape, natural alignment (NSNA)
• Adjustable Velcro® straps accommodate swelling, facilitate wound inspection
• Flexible polyethylene allows total contact
• For use in the design of a variety of lower limb orthoses
• Provides narrow M/L molding during casting
• Streamlines cast modification procedures
| Model # | ||||||
|---|---|---|---|---|---|---|
| Left | Right | Proximal Circ. | Distal Circ. | Lateral Ht. | Medial Ht. | |
| Small | 1640 | 1645 | 17″-21″ | 13″-16″ | 15″ | 10″ |
| Medium | 1641 | 1646 | 20″-24″ | 15″-18″ | 16¼” | 11¾” |
| Large | 1642 | 1647 | 23″-27″ | 17″-20″ | 16½” | 12½” |
| X-Large | 1643 | 1648 | 26″-30″ | 19″-22″ | 17¼” | 12¾” |
After you fill out and save your order form(s), scan and upload them by following the link below.
