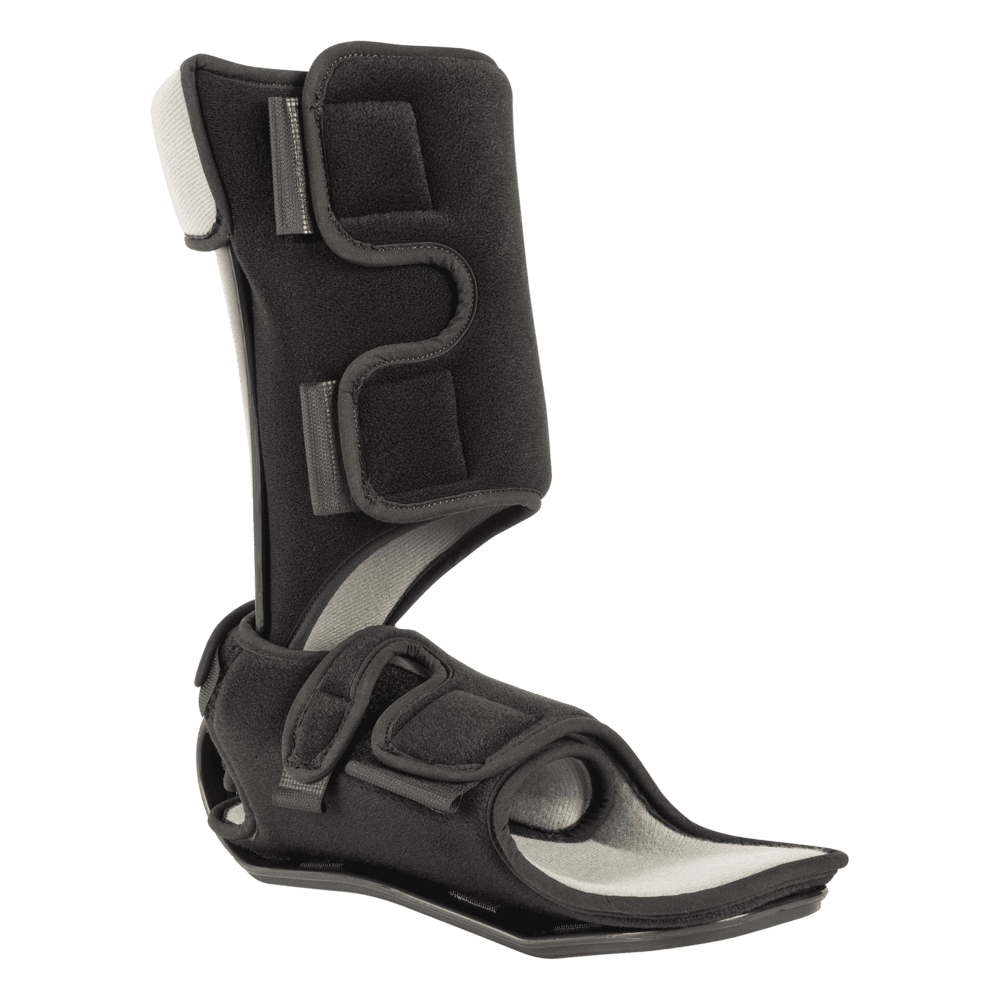

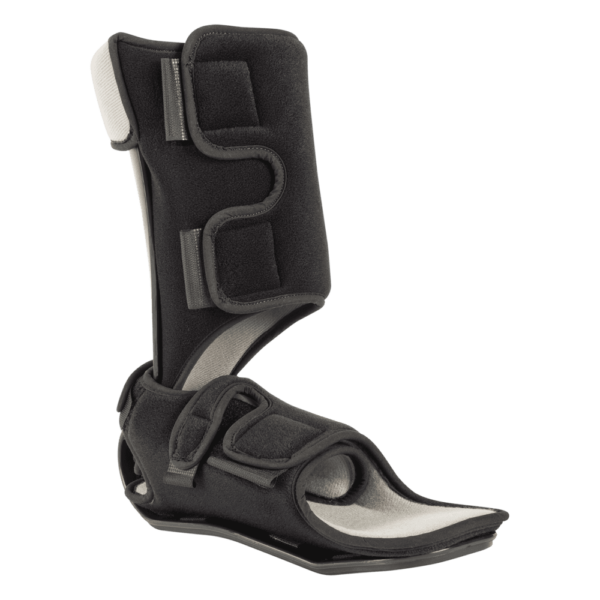

HealPRO®

Positioning Recumbent Orthosis

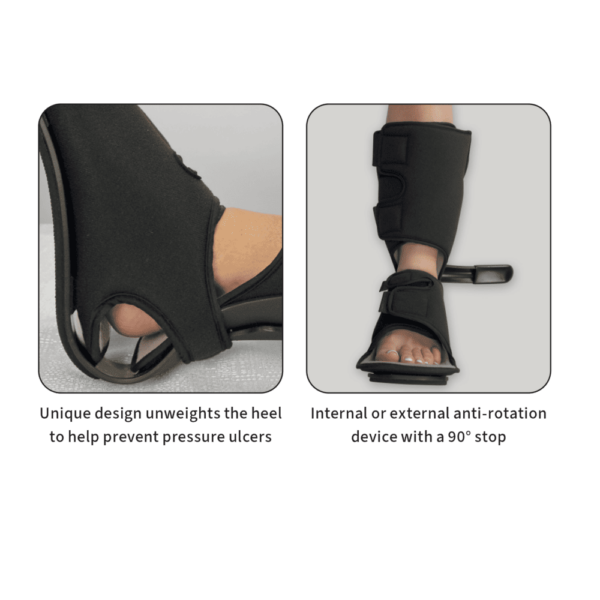

The HealPRO® is designed to unweight the heel and protect the foot and ankle from developing ulcers. It is especially indicated for patients spending extended periods of time in bed. The HealPRO® maintains the foot and ankle at a right angle to prevent loss of dorsiflexion range and to also assist in limited mobility. The unique design prevents pressure on the toes from bed linens and the CoolFoam liner provides exceptional comfort. An external bootie can be used to cover the sole and toes when the patient is out of bed, and then removed for cleaning and wound management before the patient returns to bed. An optional abductor bar kit can be used with bilateral HealPROs to control internal and external rotation of the hips.

Features

  • Washable foam liner is simple to remove and re-apply for cleaning”
  • CoolFoam™ wrap around proximal trim line reduces calf pressure
  • Easy-opening Velcro® tabs facilitate independent application and removal
  • Rubber treaded sole to enhance safety
  • Dorsifexion assist provides toe clearance in swing phase during walking
  • Extension straps included for edema and bariatric patients
  • Universal sizing — fits right or left, minimizing inventory
  • Optional abduction bar for proximal hip control

Indications

  • Prevention of heel ulcers
  • Unloading of pre-existing ulcer on posterior aspect of the calcaneus
  • Surgical positioning of the lower limb
  • Prevention of lower limb internal or external rotation while patient is supine
  • Protection of fragile and compromised skin of the foot and ankle
  • Foot drop without contractures
  • Patients at risk to lose ankle range of motion secondary to recumbent positioning

Contraindications

  • Fixed ankle contractures
  • Excessive swelling
  • Frequent ambulation
Model # Measured Foot Length Maximum
Calf Circ.*
Approx. Shoe Size
CoolFoam™ Lined Fleece Lined Women’s Men’s
Small 3530 3530F 8″-9″ 16″ 3-6 3-5
Medium 3531 3531F 9″-10″ 16″ 6-9 5-8
Large 3532 3532F 10″-11″ 18″ 9-12 8-11
X-Large 3533 3533F 11″-12″ 20″ 12-15 11-14

Optional Abductor Bar Kit odel # 3529.02
*Overall circumference can be increased using included extension straps.

Replacement Liners Kit Model #
CoolFoam™ Fleece
3530.01 3530F.01
3531.01 3531F.01
3532.01 3532F.01
3533.01 3533F.01

Kit includes replacement calf and toe pads, external cover and extension straps.
