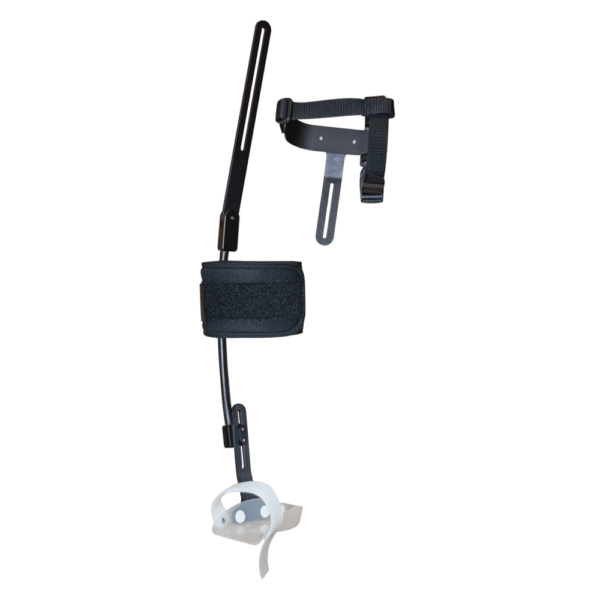

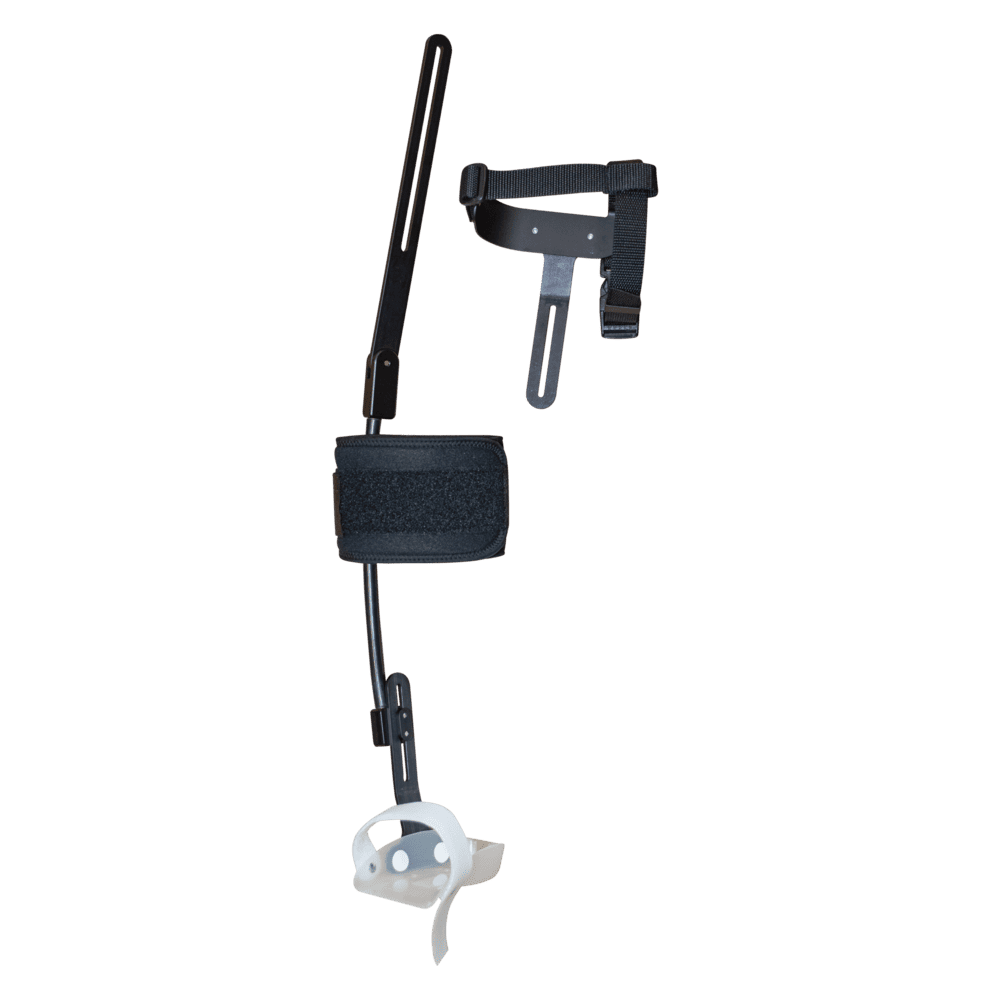

The Newport ARC is an optional, modular component designed to maintain the affected limb in either internal or external rotation. It consists of a lateral upright, calf band, external stirrup and heel cup shoe insert. The Newport ARC is indicated for primary or revision total hip arthroplasty patients at risk to dislocate in an anteiror or posterior direction. The ARC can be retrofit on any adult Newport system.
• Maintains the transverse plane alignment of the limb (i.e., internal or external rotation)
• Easy to fit and adjust
• Patients at risk to dislocate in an anterior or posterior direction
| Size | Model # | Infant/ Toddler Shoe Size | Estimated Foot Plate Length | Brace Height | ||
|---|---|---|---|---|---|---|
| US | UE | UK | ||||
| Small | 3614 | <0-7 | 16-23 | 0-6 | 5¼” | 6½” |
| Medium | 3615 | 7-10 | 23-27 | 6-9 | 6½” | 8″ |
| Large | 3616 | 10-13> | 27-31 | 9-13 | 7½” | 10½” |
Any shoe size can be substituted at no additional charge.
Fits all adult Newport Hip Systems and includes External Stirrup and Heel Cup Shoe Insert.
