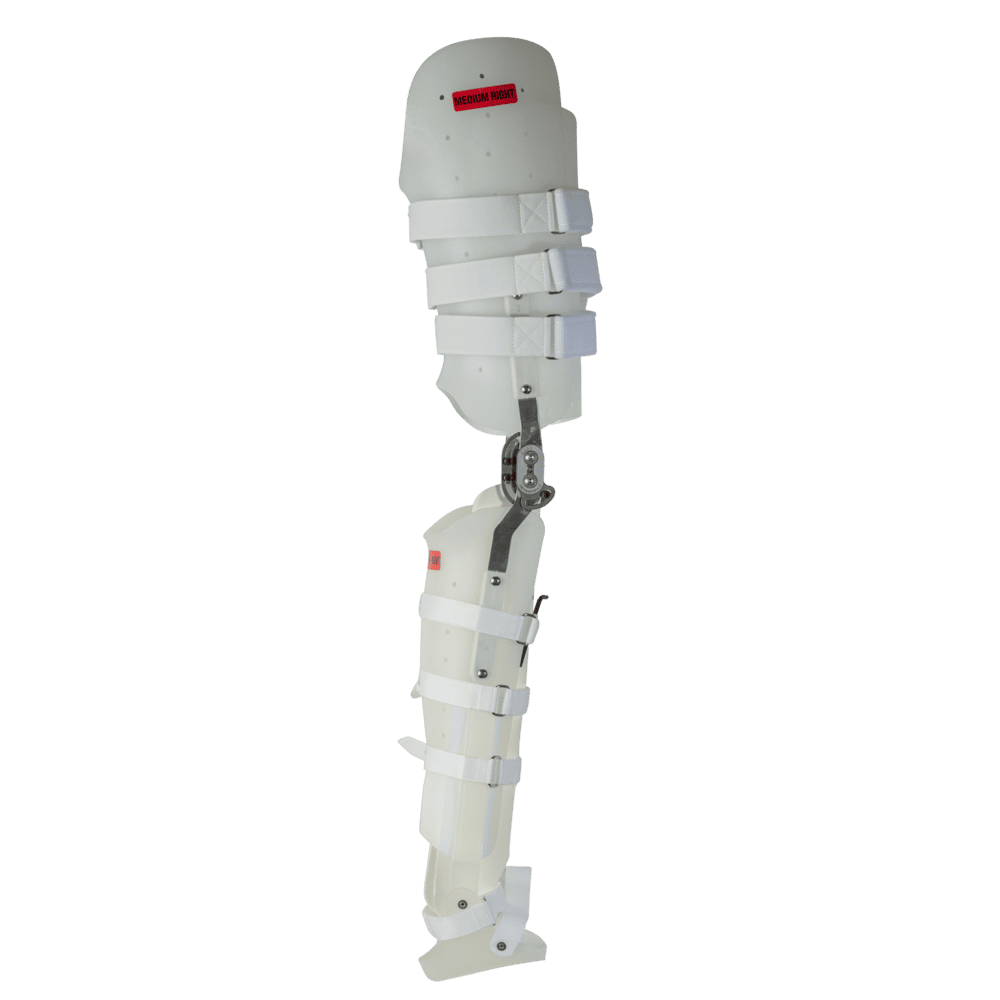

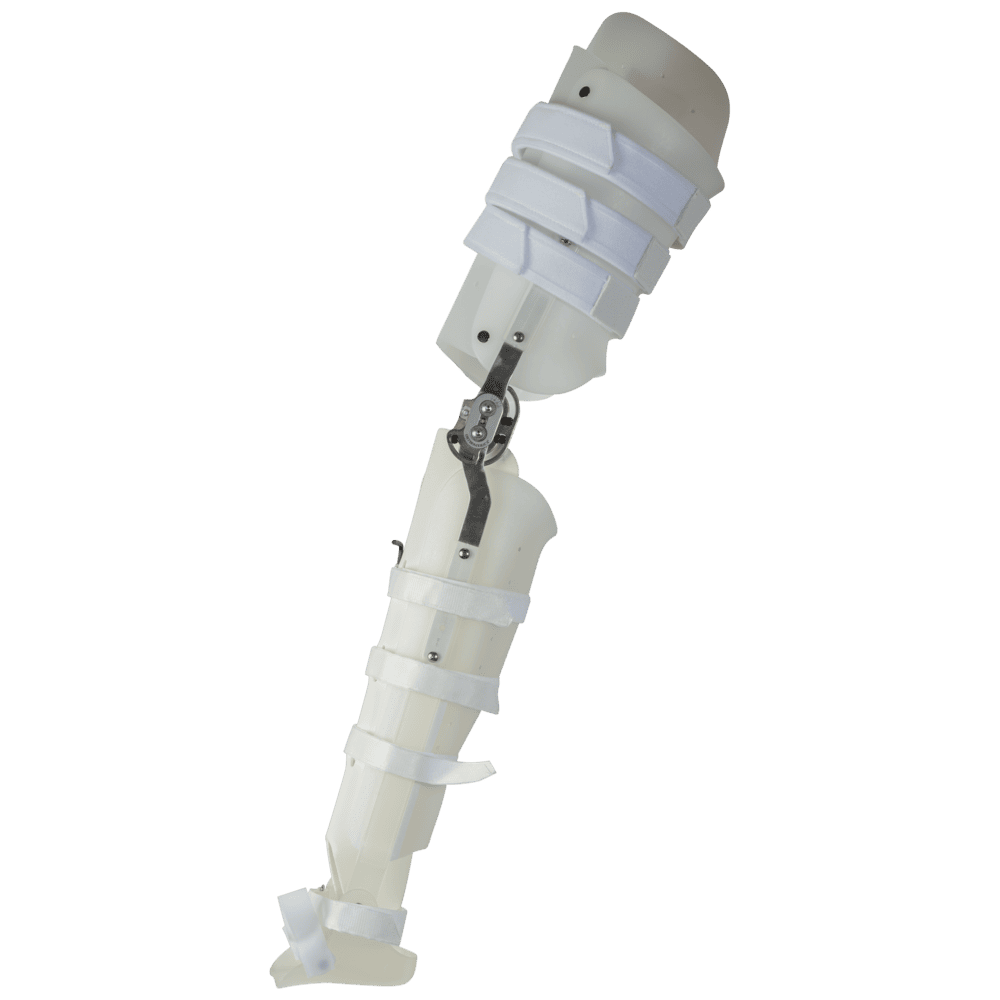

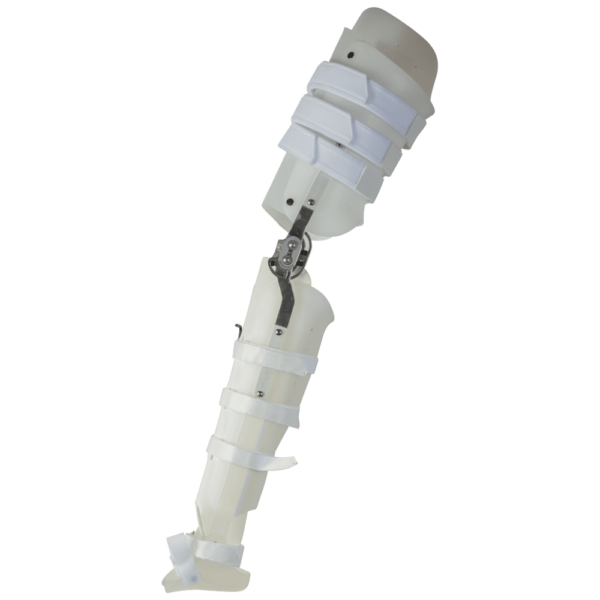

Orlando® KAFO – Adjustable Range of Motion KAFO

Preassembled Orlando adjustable ROM KAFO

The Orlando Adjustable Range of Motion KAFO is prefabricated and pre-assembled for many full leg orthopaedic indications. It is especially useful for distal femoral or proximal tibial fractures or hemiplegic patients following CVA. the narrow M-L and longer A-P thigh design provides an improved anatomical fit. Adjustable range of motion knee joints provide limited sagital plane range of motion and coronal plane knee stability. Single axis or solid ankle shoe insert with extended footplate will prevent flaccid foot drop for post-CVA patients. Plastic joint covers are available for cosmetic considerations. Components also available separately for easy replacement over the course of the rehabilitation program.

Features

• Trimmable polyethylene components offer more comfortable total contact
• Pre-assembled—not a kit
• Lightweight, durable polyethylene femoral and tibial components with low density tongues
• Excellent for office or clinical application
• Available with adjustable joints

Indications

• Post-operative and non-operative lower extremity fractures
• Fracture managment after internal fixation
• Patients needing stability after removal of external fixation devices
• Post-CVA



Proximal Circ. Mid Thigh Circ. Distal Circ. Largest Calf Circ. Length (Perineum to floor) U.S. Shoe Size
Small 17″-21″ 14″-19″ 13″-16″ 11″-12″ 28″-31″ Men 5-7

Women 6 or less

Medium 20″-24″ 19″-24″ 15″-18″ 13″-15″ 31″-34″ Men 7½-10

Women 6½ & up

Large 23″-27″ 23″-27″ 17″-20″ 15″-17″ 34″-37″ Men 10½-13

All components interchangeable as well as available separately. Refer to page 49 for component sizing and details.

Adjustable Range-of-Motion KAFO

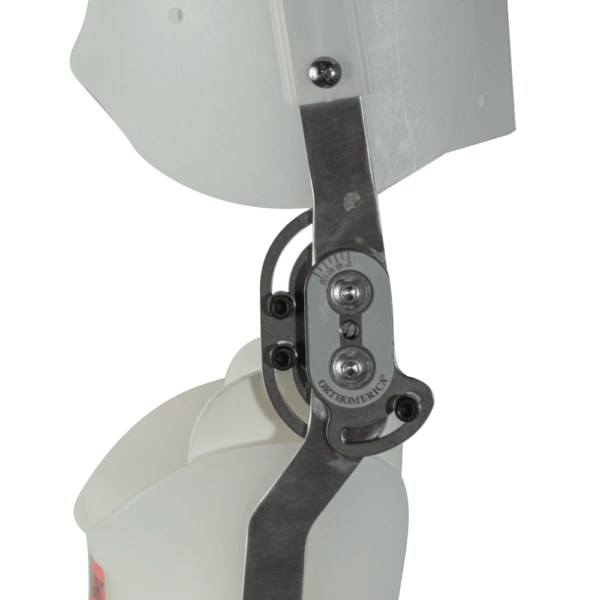

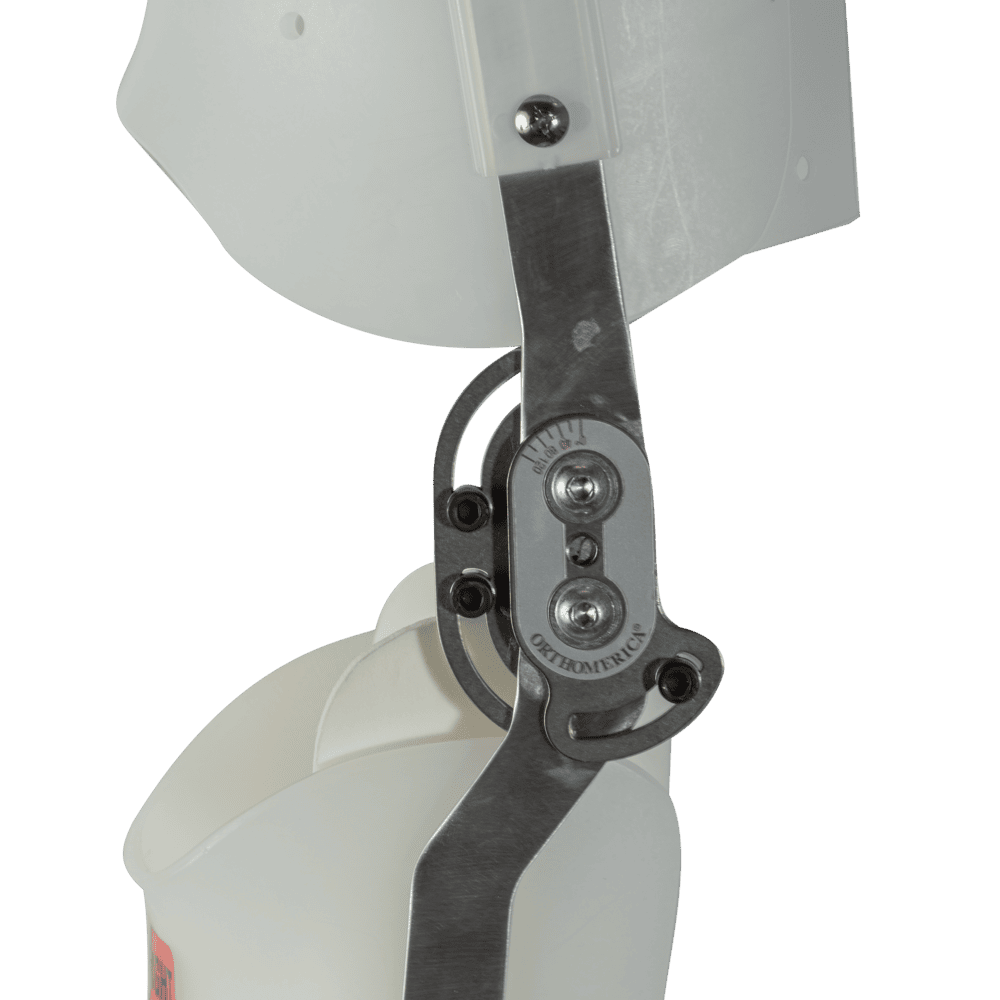

With 1/8″ adjustable range-of-motion knee joints, free ankle motion shoe insert

Left Model # Right Model #
Small 1690.01 1695.01
Medium 1691.01 1696.01
Large 1692.01 1697.01
