Orlando® KAFO – Drop Lock KAFO

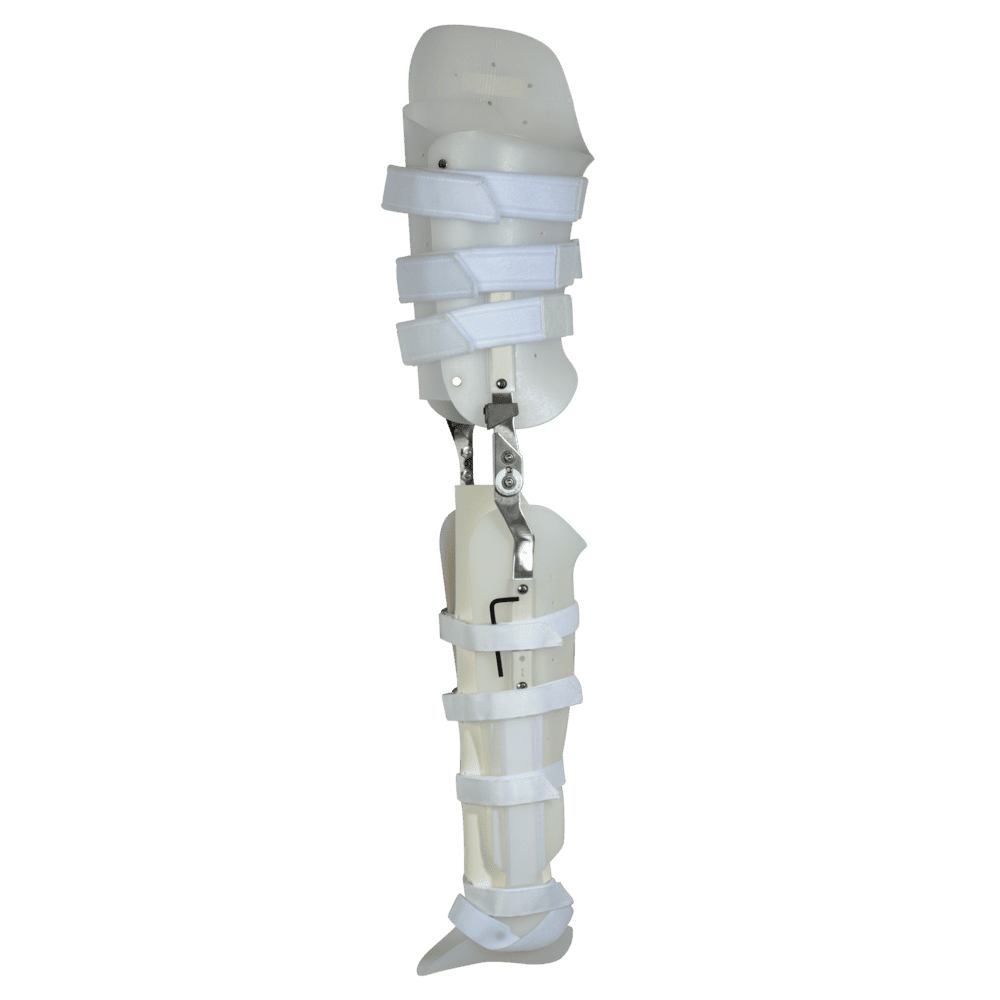

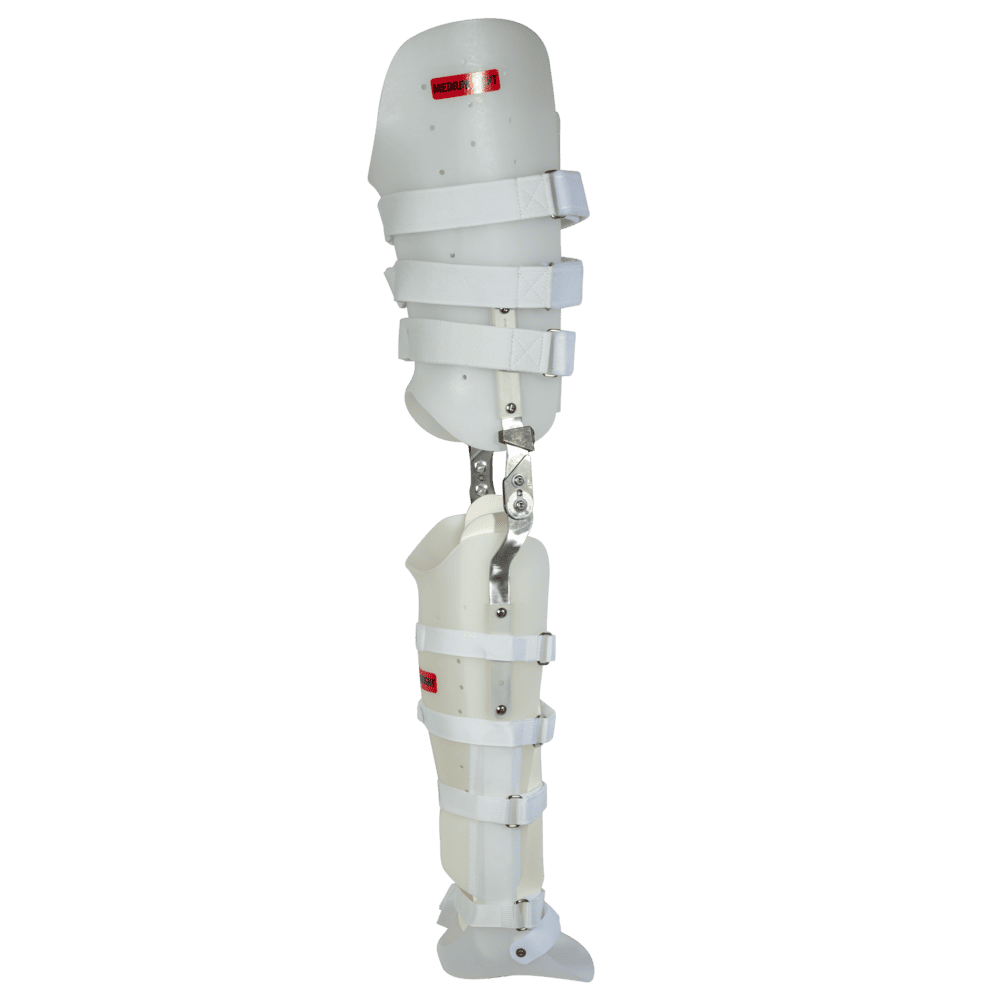

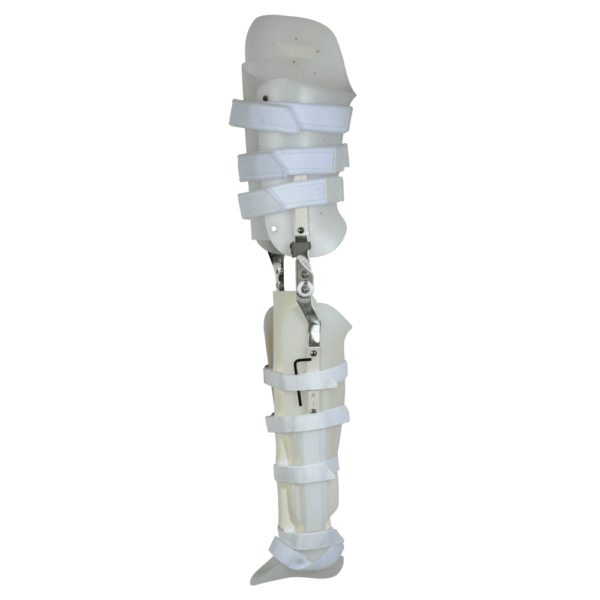

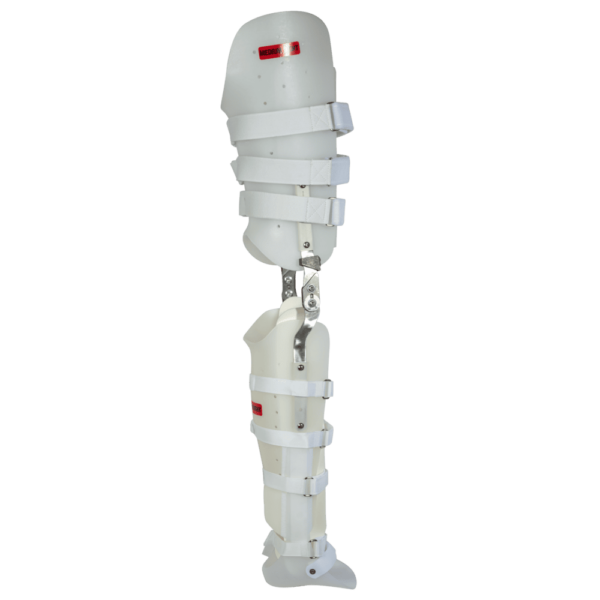

Preassembled Orlando drop lock KAFO

The Orlando Drop Lock KAFO is prefabricated and pre-assembled for many full leg orthopaedic indications. It is especially useful for distal femoral or proximal tibial fractures or hemiplegic patients following CVA. the narrow M-L and longer A-P thigh design provides an improved anatomical fit. Drop lock knee joints provide stance phase knee stability in the sagittal and coronal planes. Single axis or solid ankle shoe insert with extended footplate will prevent flaccid foot drop for post-CVA patients. Plastic joint covers are available for cosmetic considerations. Components also available separately for easy replacement over the course of the rehabilitation program.

Features

• Trimmable polyethylene components offer more comfortable total contact
• Pre-assembled—not a kit
• Lightweight, durable polyethylene femoral and tibial components with low density tongues
• Excellent for office or clinical application
• Available with adjustable joints

Indications

• Post-operative and non-operative lower extremity fractures
• Fracture managment after internal fixation
• Patients needing stability after removal of external fixation devices
• Post-CVA

Model # 3676 (Please specify right or left when ordering.)

All components interchangeable as well as available separately. Refer to page 49 for component sizing and details.

Drop Lock KAFO

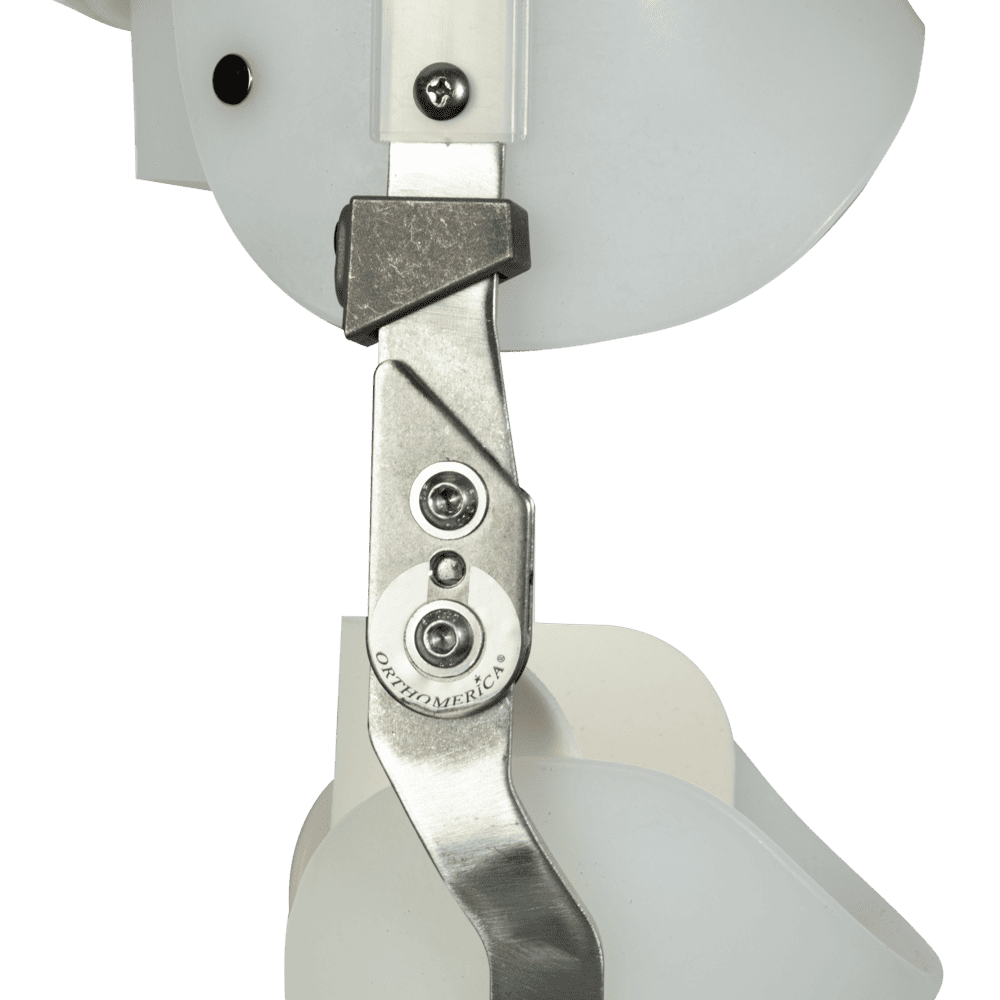

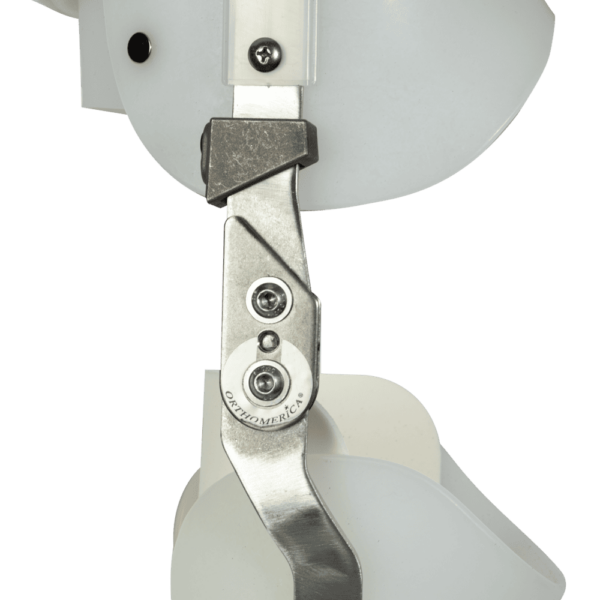

For hemiplegic indications with 1/8″ drop lock knee joints, solid ankle shoe insert

Size Model # Shoe Size Brace Height Calf Circ. Footplate Length Calf Band Width
Left Right
Small 3540 3545 Size 6 or less 12″ 13½” 6¼” 8″
Medium 3541 3546 Men 5-7, Women 6 or less 13½” 14″ 6¾” 8″
Large 3542 3547 Men 7½-10, Women 6½ up 14″ 14½” 7″ 9″
X-Large 3543 3548 Men 10½-13 14″ 15″ 7″ 9″
