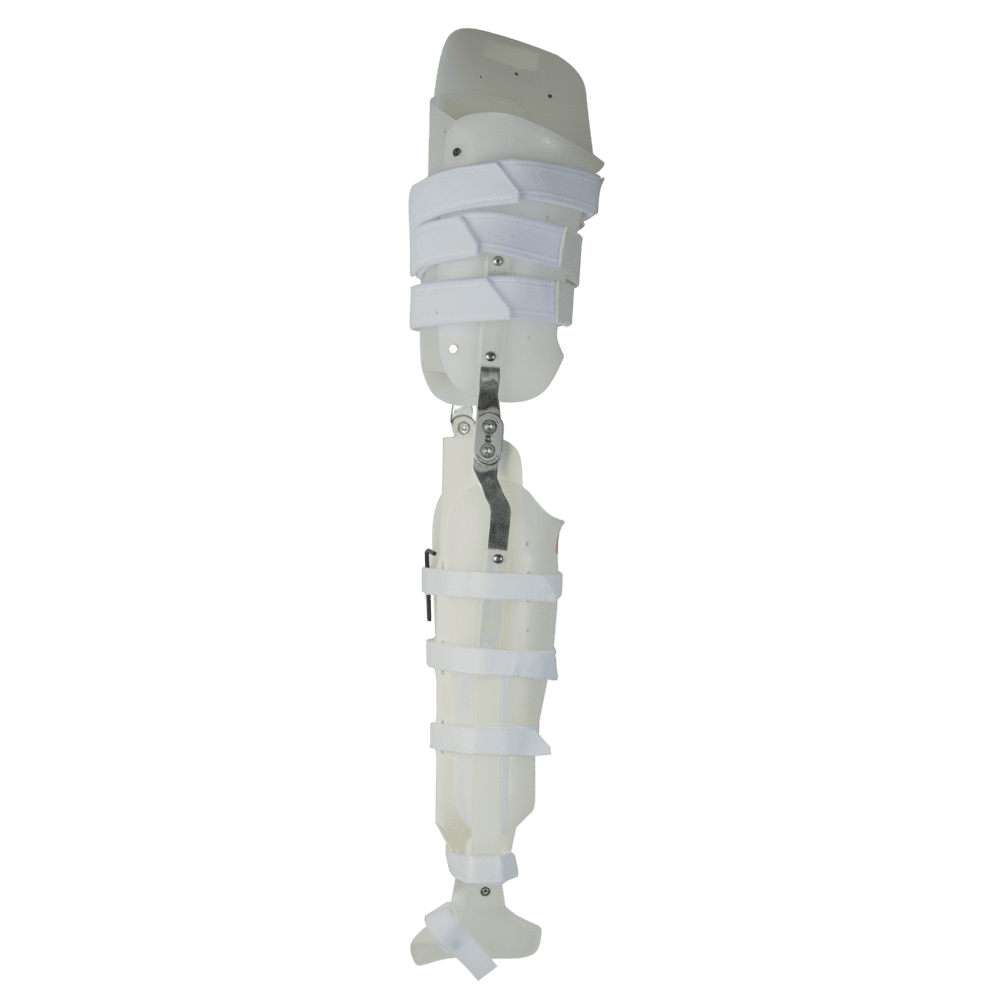

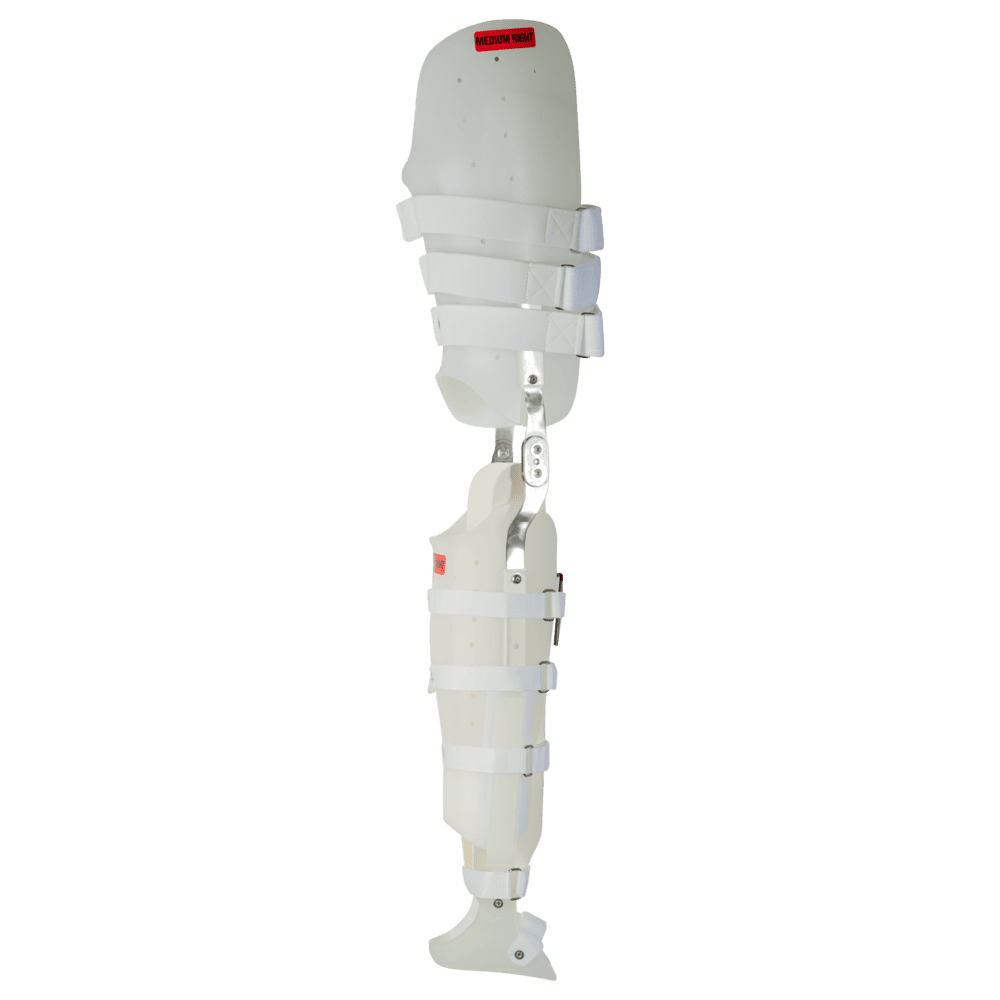

The Orlando Free Motion KAFO is prefabricated and pre-assembled for many full leg orthopaedic indications. It is especially useful for distal femoral or proximal tibial fractures or hemiplegic patients following CVA. the narrow M-L and longer A-P thigh design provides an improved anatomical fit. Free motion knee joints provide coronal plane knee control. Single axis or solid ankle shoe insert with extended footplate will prevent flaccid foot drop for post-CVA patients. Plastic joint covers are available for cosmetic considerations. Components also available separately for easy replacement over the course of the rehabilitation program.
• Trimmable polyethylene components offer more comfortable total contact
• Pre-assembled—not a kit
• Lightweight, durable polyethylene femoral and tibial components with low density tongues
• Excellent for office or clinical application
• Available with adjustable joints
• Post-operative and non-operative lower extremity fractures
• Fracture managment after internal fixation
• Patients needing stability after removal of external fixation devices
• Post-CVA
| Proximal Circ. | Mid Thigh Circ. | Distal Circ. | Largest Calf Circ. | Length (Perineum to floor) | U.S. Shoe Size | |
|---|---|---|---|---|---|---|
| Small | 17″-21″ | 14″-19″ | 13″-16″ | 11″-12″ | 28″-31″ | Men 5-7
Women 6 or less |
| Medium | 20″-24″ | 19″-24″ | 15″-18″ | 13″-15″ | 31″-34″ | Men 7½-10
Women 6½ & up |
| Large | 23″-27″ | 23″-27″ | 17″-20″ | 15″-17″ | 34″-37″ | Men 10½-13 |
All components interchangeable as well as available separately. Refer to page 49 for component sizing and details.

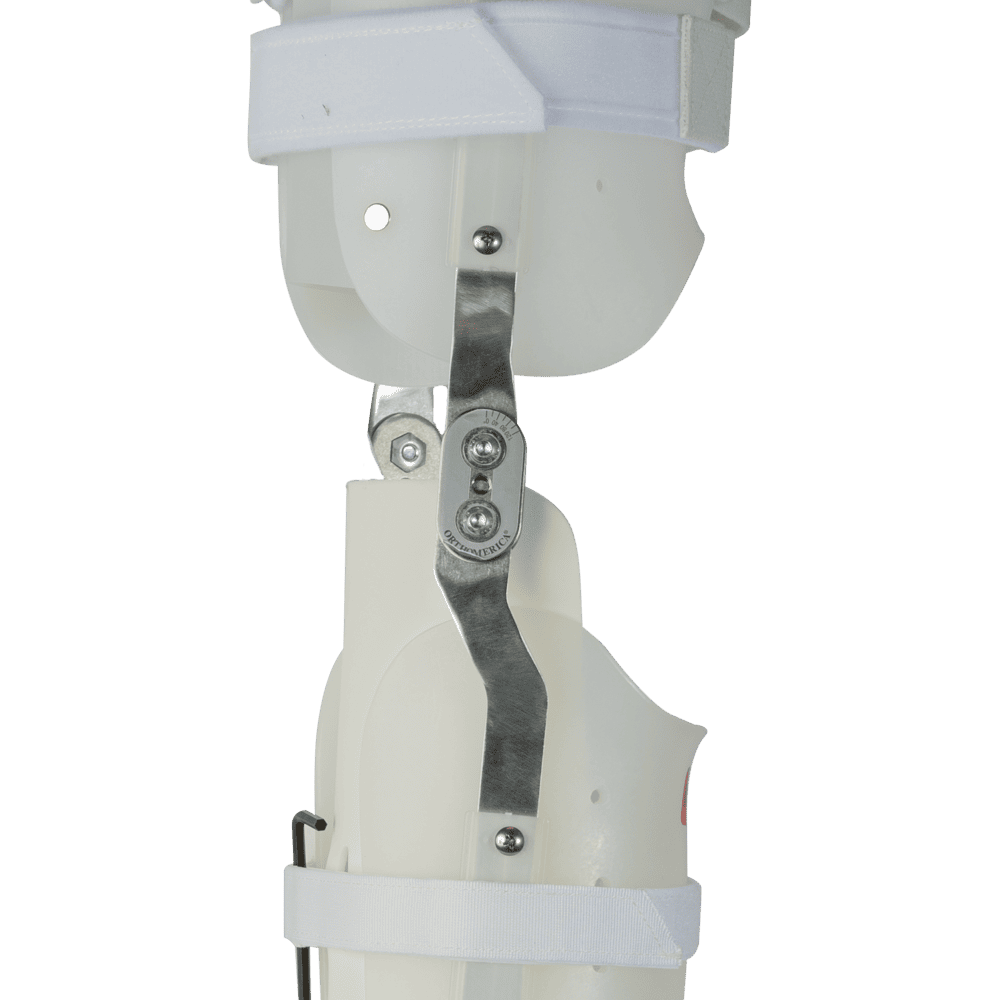

With 1/8″ free motion knee joints, free ankle motion shoe insert
| Left Model # | Right Model # | |
|---|---|---|
| Small | 1690 | 1695 |
| Medium | 1691 | 1696 |
| Large | 1692 | 1697 |
