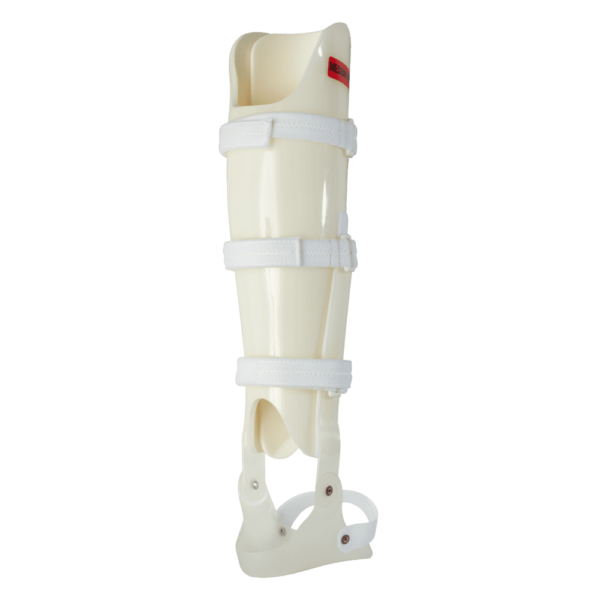

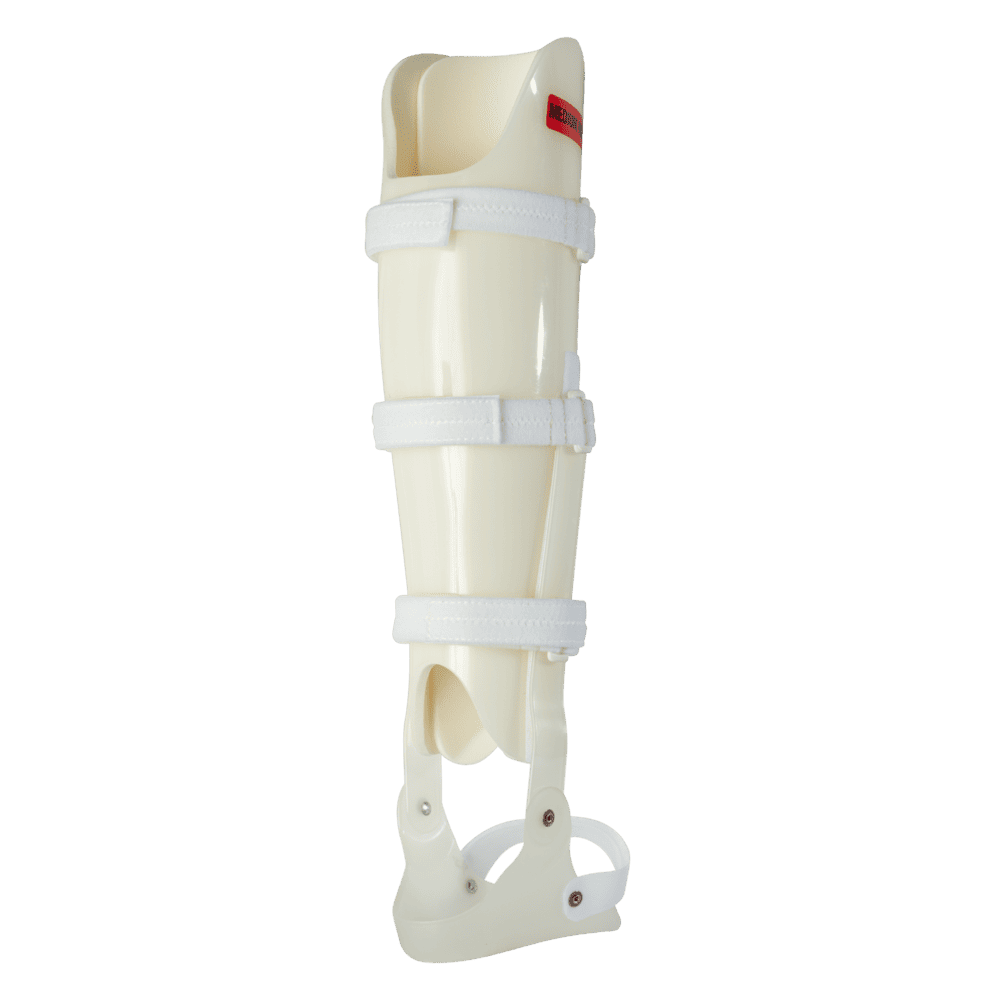

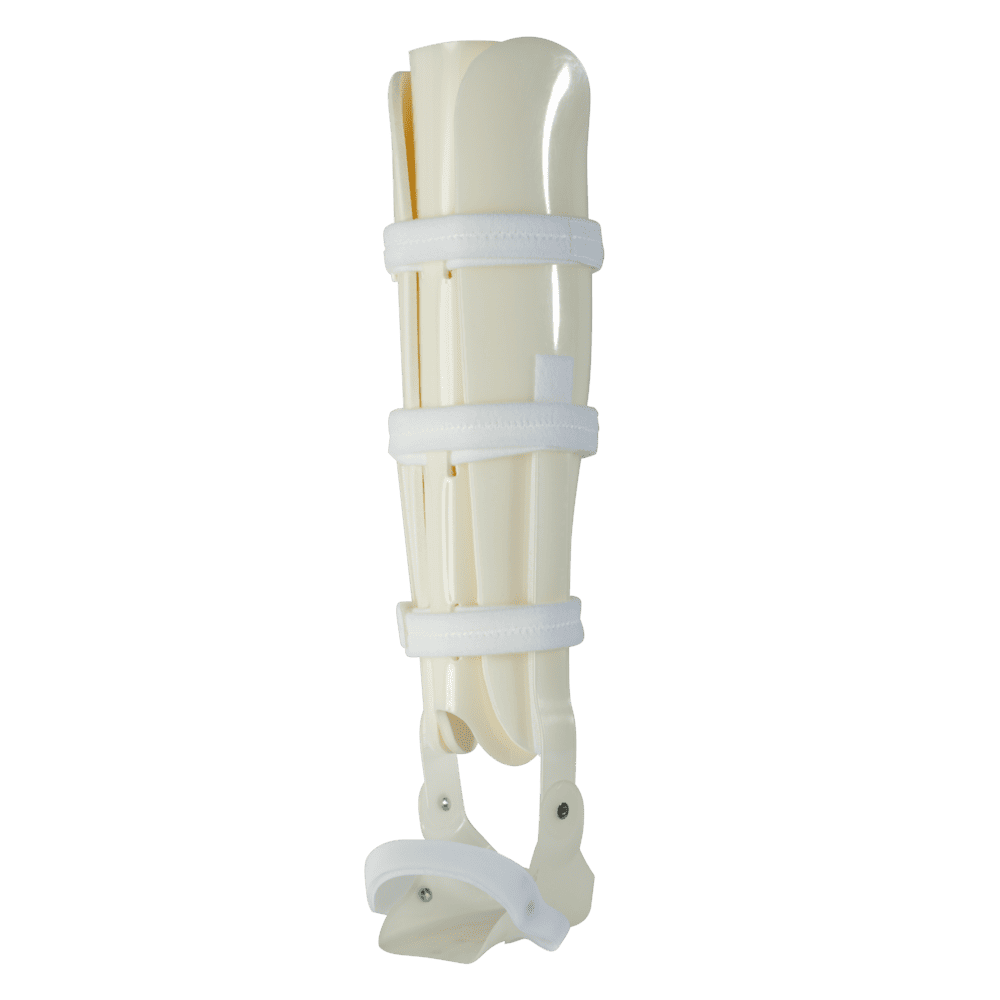

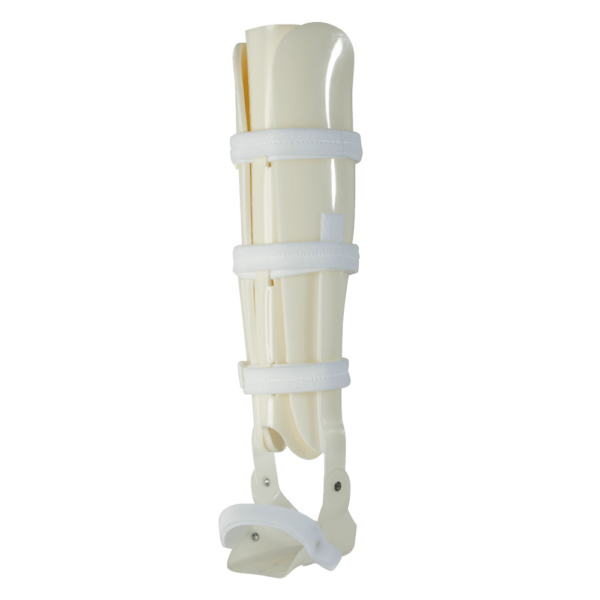

This prefabricated, molded foam lower leg orthosis was designed to provide extra support post-operatively, especially following intramedullary nailing of the tibia and following removal of external fixation devices. This design is especially useful when excessive soft tissue damage must be monitored. The plastic superstructure allows excellent quality x-rays, provides circumferential support and hydrostatic compression for early weight bearing to support orthopedic protocols. Modular shoe inserts are interchangeable.
• Adjustable Velcro® straps accommodate volume changes
• Anterior opening facilitates soft tissue monitoring
• Effective following external fixator removal, intramedullary nailing
Model # | Calf Circ. (Bulge at Gastroc) | Ankle (Circ. Proximal to Malleoli) | Length (Superior Pole of Patella to Apex of Lateral Malleolus) | ||
---|---|---|---|---|---|
Size | Left | Right | |||
Small | 1571 | 1576 | 11″-13″ | 8″-10″ | 16½”-18½” |
Medium | 1572 | 1577 | 13″-15″ | 9″-11″ | 17½”-19½” |
Large | 1573 | 1578 | 15″-17″ | 10″-12″ | 19½”-21½” |
