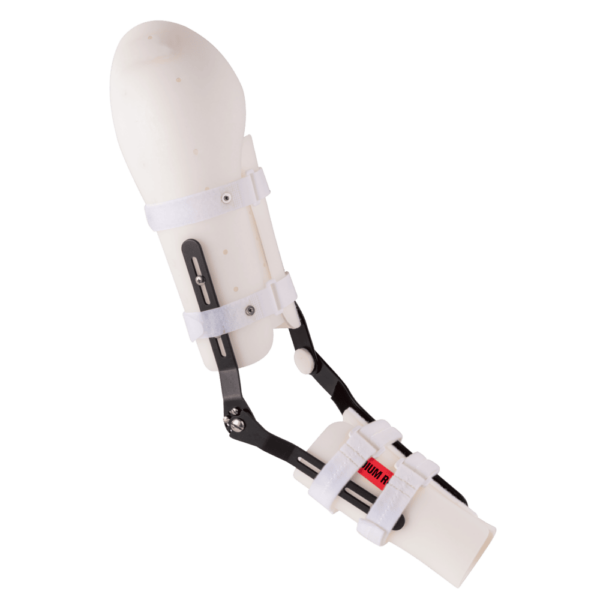

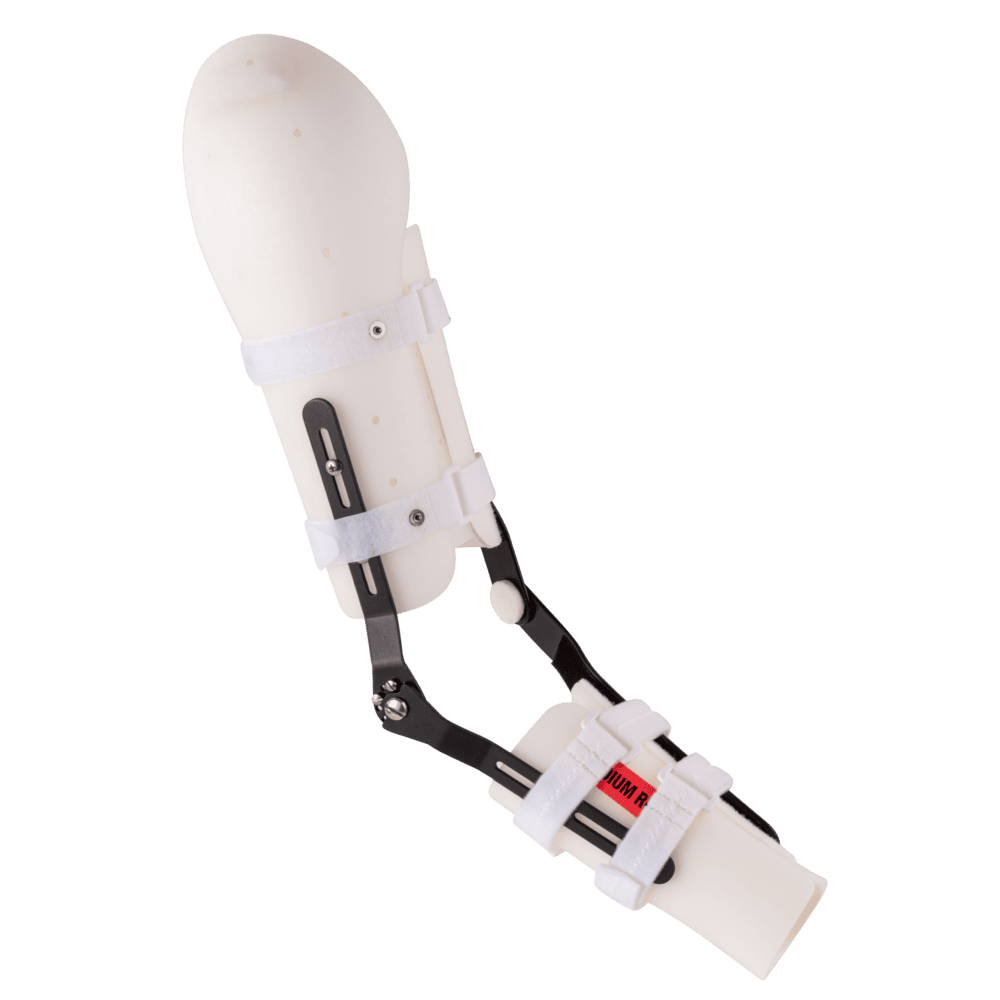

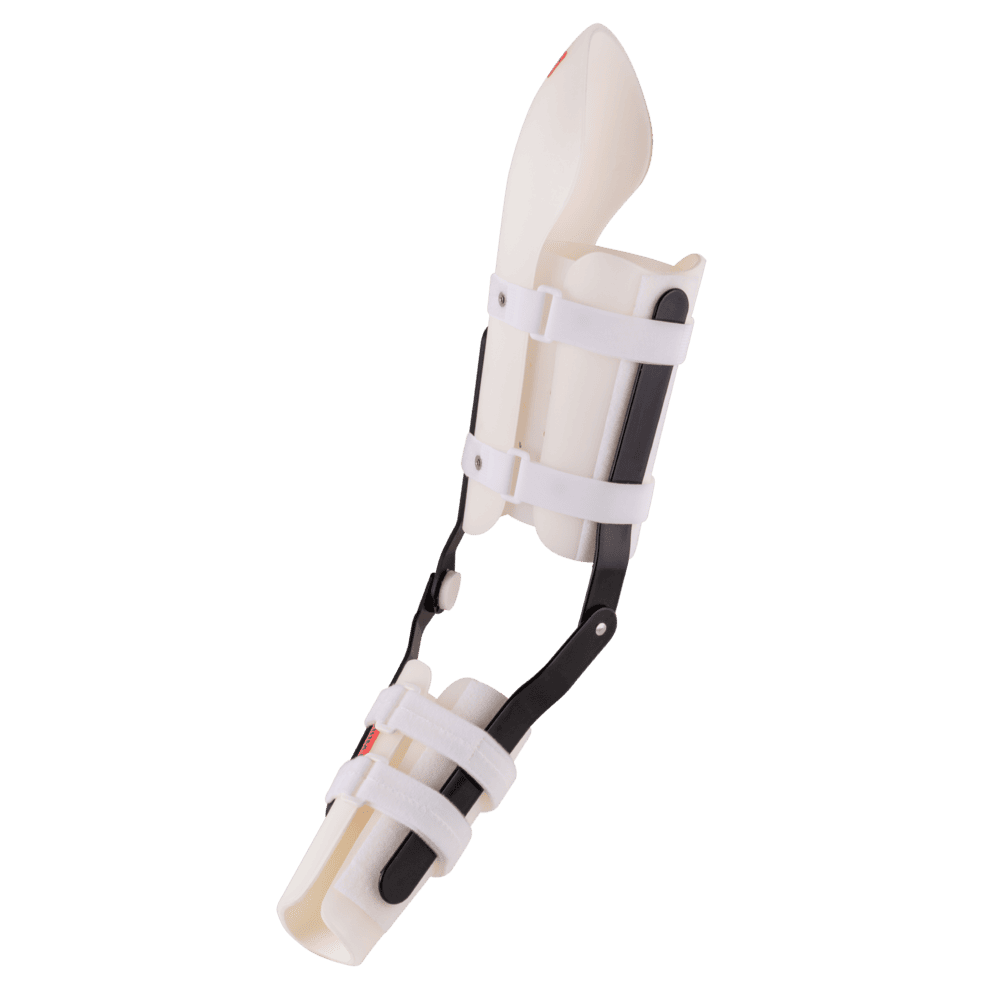

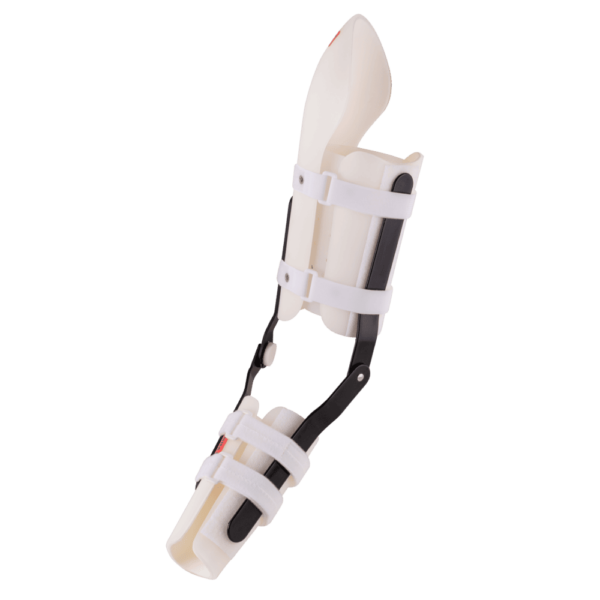

This prefabricated modular arm orthosis is effective for post-surgical or post-injury indications where limited range of motion and rotation control are desired. The upper arm component offers a snug fit with two different lower arm choices lined with 1/8″ Aliplast, specifically an ulnar sleeve or wrist-hand module to control rotation. The forearm and humeral sections are perforated for ventilation and improved comfort. Adjustable Velcro® straps facilitate application and removal for wound inspection, dressing and sock changes. Anodized aluminum lateral joint allows adjustment in 30° increments while the plastic medial joint combination offers more positive control than more standard Elbow OrthosIs.
• Lightweight modular design
• Ventilated humeral and forearm sections
• Jointed elbow control in 30-degree increments
• Post-surgical or post-injury indications needing limited range of motion and rotation control
| Model # | Upper Arm Circ. | |||||
|---|---|---|---|---|---|---|
| Size | Left | Right | Prox. | Dist. | Forearm Circ. | Ulnar Comp. Length |
| Small | 1120 | 1125 | 9″-11″ | 7″- 9″ | 7″- 9″ | 6″ |
| Medium | 1121 | 1126 | 11″-13″ | 9″-11″ | 9″-11″ | 7″ |
| Large | 1122 | 1127 | 13″-15″ | 11″-13″ | 11″-13″ | 8″ |
Kit includes 2 Colles’ socks (Model # 4134), sling
