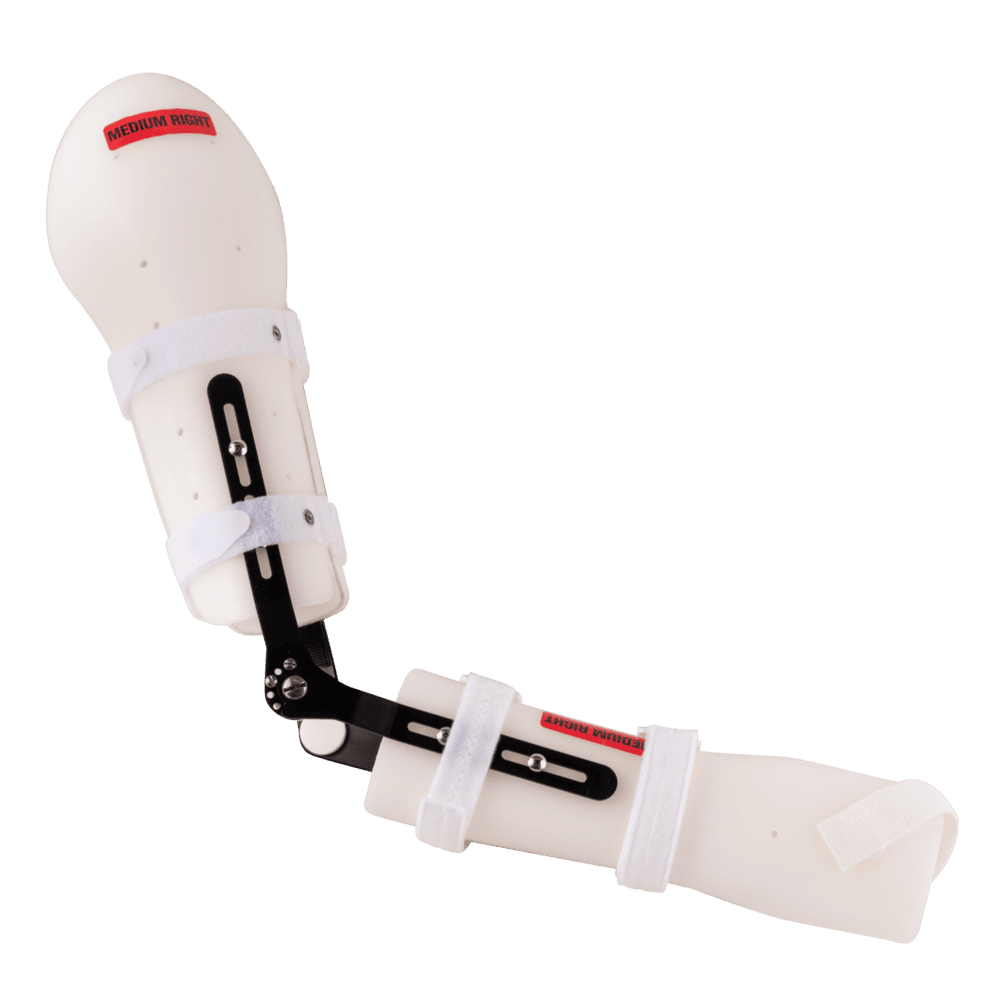

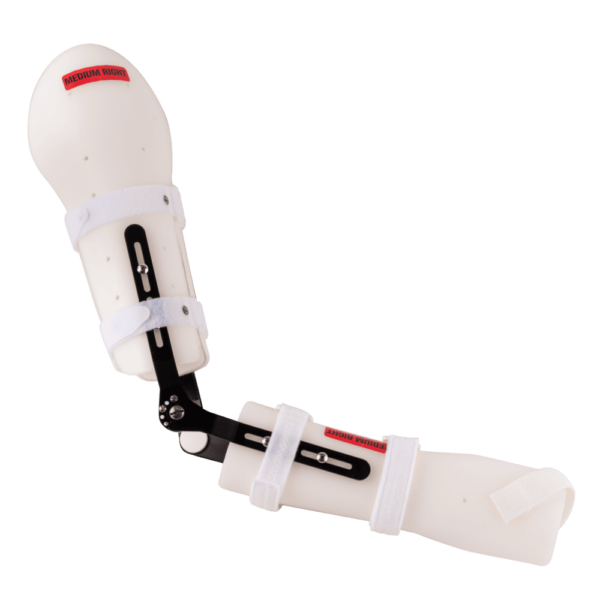

This prefabricated modular arm orthosis is effective for post-surgical or post-injury indications where limited range of motion and rotation control are desired. The upper arm component offers a snug fit with two different lower arm choices lined with 1/8″ Aliplast, specifically an ulnar sleeve or wrist-hand module to control rotation. The forearm and humeral sections are perforated for ventilation and improved comfort. Adjustable Velcro® straps facilitate application and removal for wound inspection, dressing and sock changes. Anodized aluminum lateral joint allows adjustment in 30° increments while the plastic medial joint combination offers more positive control than more standard Elbow OrthosIs.
• Lightweight modular design
• Ventilated humeral and forearm sections
• Jointed elbow control in 30-degree increments
• Post-surgical or post-injury indications needing limited range of motion and rotation control
| Model # | Upper Arm Circ. | Lower Arm Circ. | |||||
|---|---|---|---|---|---|---|---|
| Size | Left | Right | Prox. | Dist. | Prox. Circ. | Dist.Circ. | Palm |
| Width | |||||||
| Small | 1130 | 1135 | 9″-11″ | 7″-9″ | 9″ | 7″ | 2½”- 3″ |
| Medium | 1131 | 1136 | 11″-13″ | 9″-11″ | 12″ | 8″ | 3”-3½” |
| Large | 1132 | 1137 | 13″-15″ | 11″-13″ | 14″ | 9″ | 3½”-4″ |

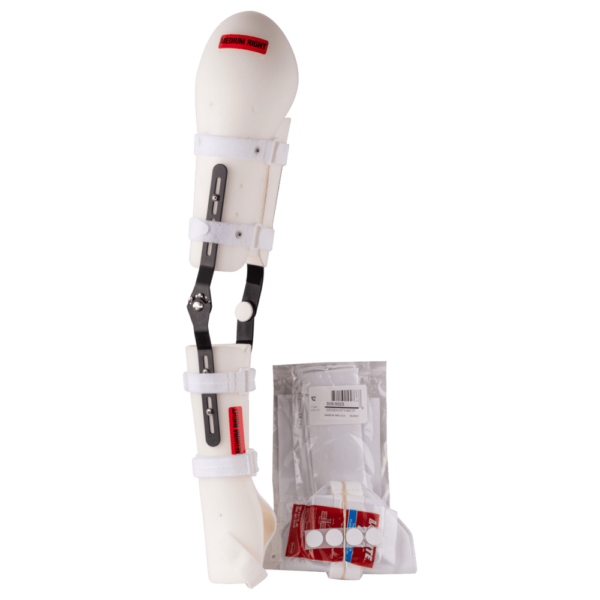

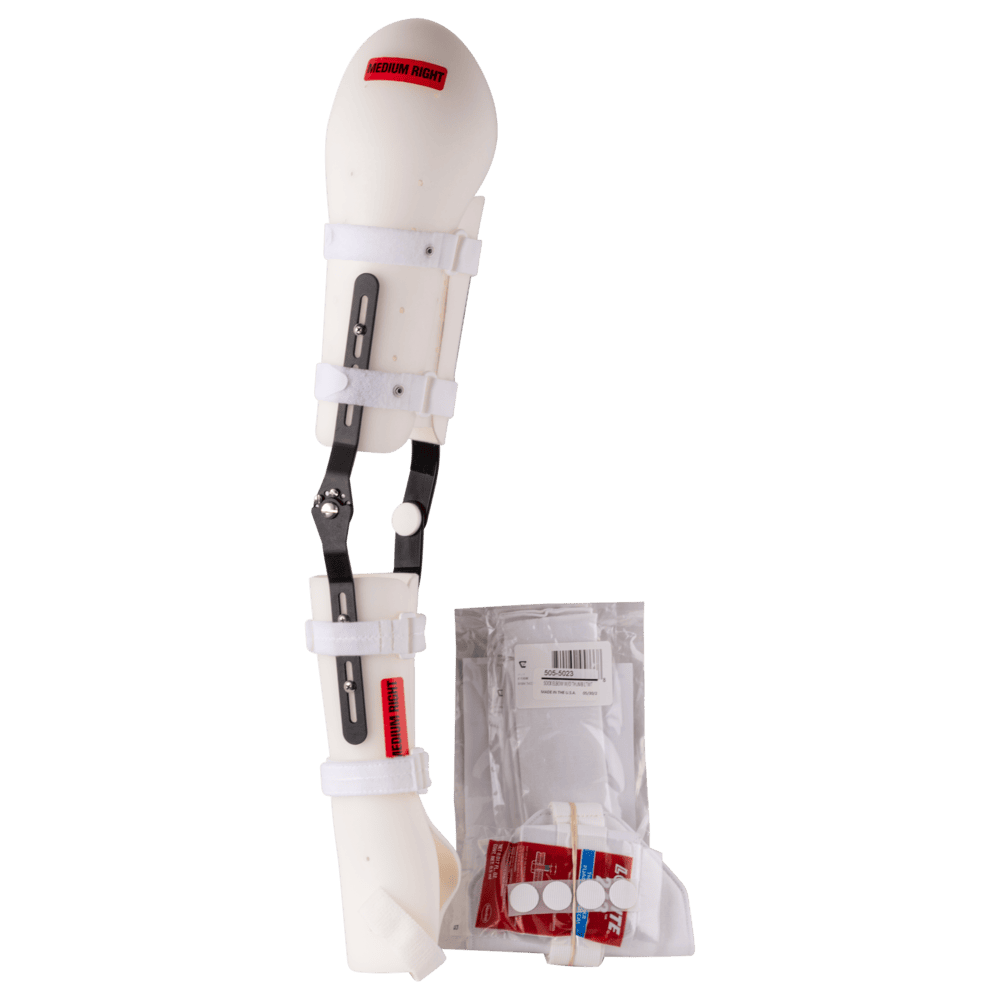

Kit includes 2 Colles’ socks (Model # 4134), sling
All components are interchangeable as well as available separately.
Available with Bilateral Aluminum Joints (Model # 1146) upgrade charge applies
Available CTM with Bilateral Aluminum Wrist Joints (Model # 620) upgrade charge applies
