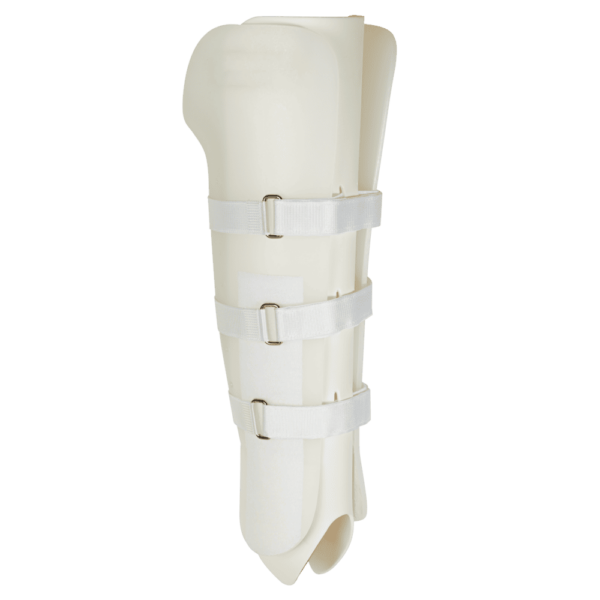

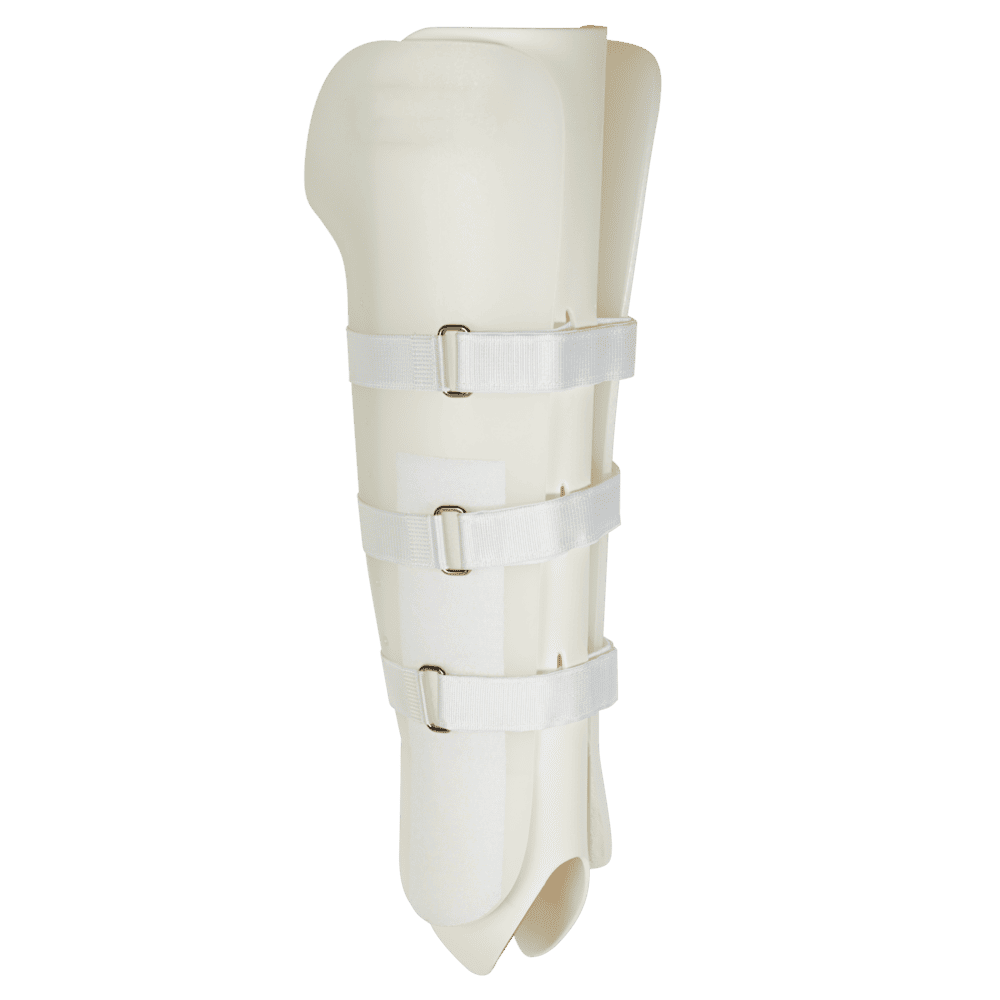

The Tibia Fracture Brace section is used as the distal component of a long-leg orthosis. It has an anterior opening and tongue. The polyethylene permits easy trimming and modification with a heat gun. It is versatile to accept any knee joint design and is often used in combination with the Femoral Fracture Brace thigh section. It can be easily applied in the hospital and clinic settings.
• Versatile component of long leg bracing system (e.g., combine with thigh section)
• Easy modification
• Easy hospital and clinic application
• For use in the design of a variety of lower limb orthoses
| Model # | |||||
|---|---|---|---|---|---|
| Left | Right | Calf Circ. | Ankle Circ. | Length (Superior Patella to apex of Lateral malleolus) | |
| Small | 1620 | 1625 | 11″-13″ | 8″-10″ | 16½”-18½” |
| Medium | 1621 | 1626 | 13″-15″ | 9″-11″ | 17½”-19½” |
| Med./Long | 1622 | 1627 | 14″-16″ | 9″-11″ | 21½”-23½” |
| Large | 1623 | 1628 | 15″-17″ | 10″-12″ | 19½”-21½” |
