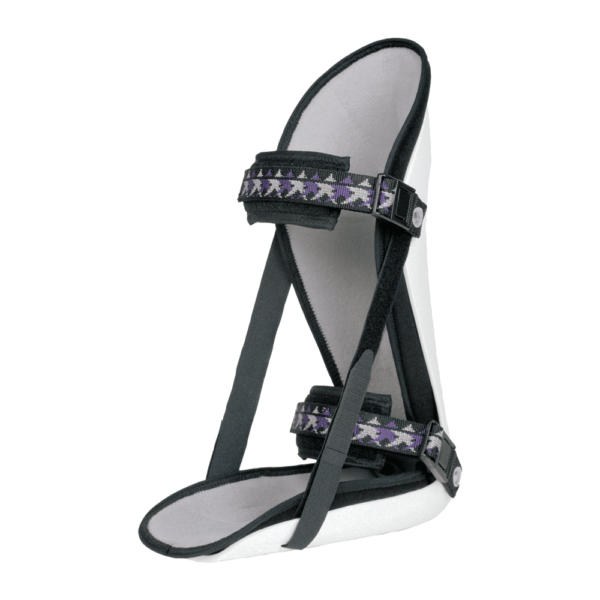

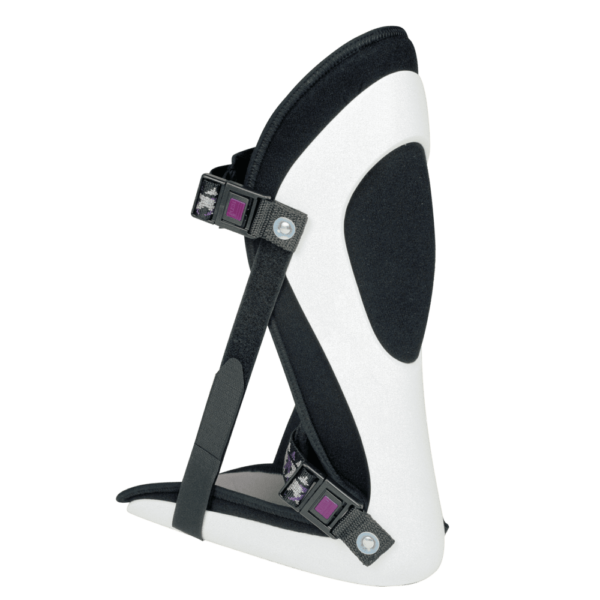

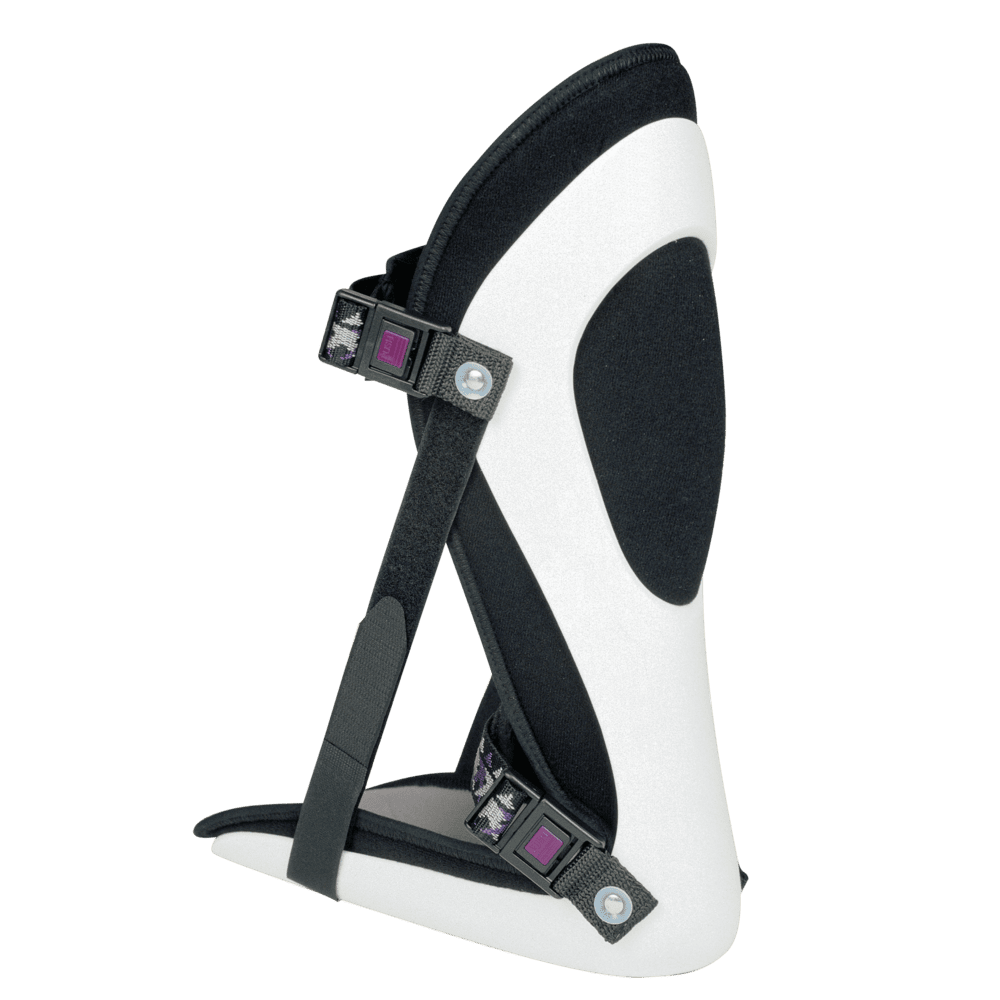

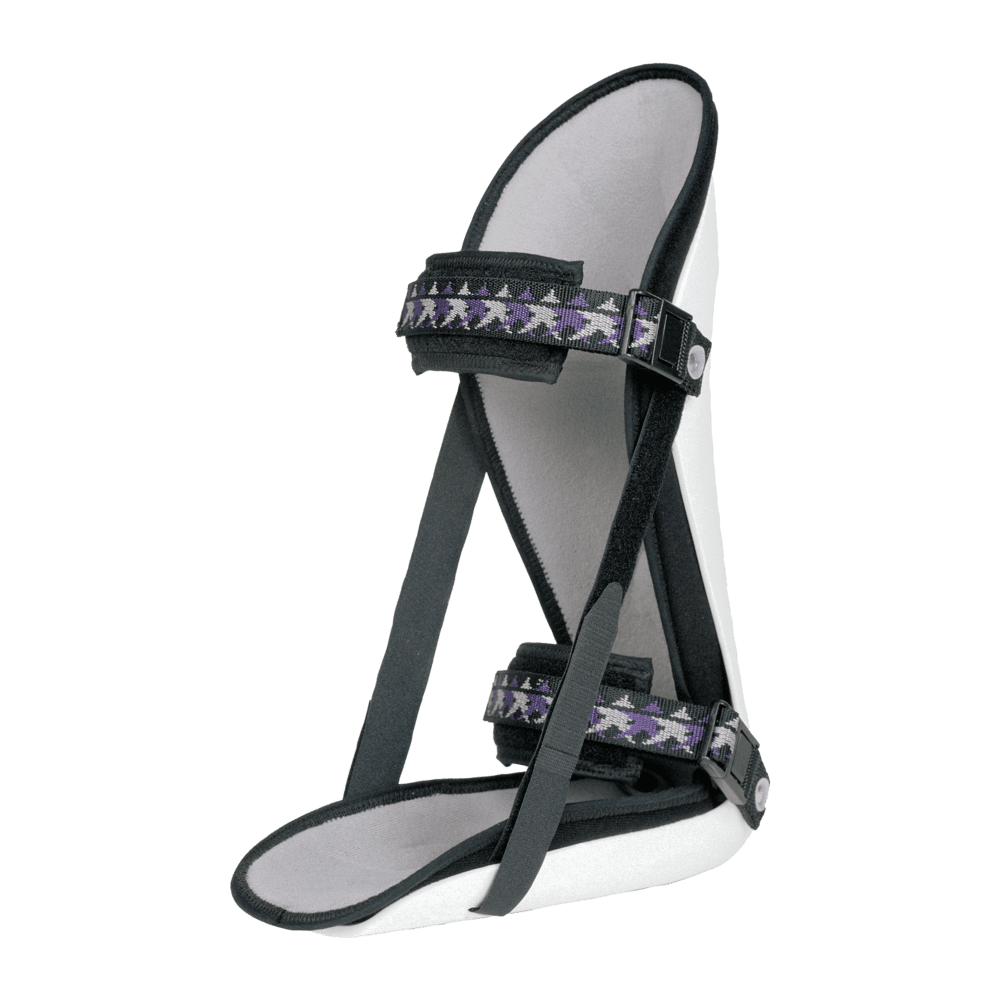

The Universal Plantar Fasciitis Orthosis (UFO) is a prefabricated night splint for the effective treatment of plantar fasciitis, achilles tendinitis, and other conditions. The UFO supports the affected foot and ankle in a varied amount of dorseiflexion, applying a low load prolonged stretch (LLPS) to the soft tissues of the plantar fascia and Achilles tendon. LLPS promotes gentle stretching, healing, and progressive remodeling of these tissues over time. The combination of proper positioning and low load stretching also reduces the stress and pain caused by imflammation and tissue shortening. Treatment programs using the UFO are effective in breaking the cycle of injury, pain and re-injury due to otherwise unlimited contraction and deformity of the soft tissues at night.
The simple variable dorsiflexion design allows the patient to quickly and easily adjust the amount of applied stretch to provide the most effective pain relief.
• Lightweight, low profile outer shell
• Adjustable bilateral dorsiflexion assist straps
• Padded instep and proximal straps
• Comfortable overnight immobilization
• CoolFoam replaceable liner wicks moisture from the skin for enhanced hygiene
• Replacement liners can be ordered separately
• Non-skid pad included
• Five universal sizes – fits both left or right, minimizing inventory
• Plantar fasciitis
• Achilles tendonitis
• Tendonosis
• Heel spurs or bone spurs
• Chronic heel pain
• Conditions needing nighttime immobilization
• Other lower extremity overuse injuries
• Fixed ankle contractures
• Excessive swelling
Size | Model # | Shoe Size | Brace Height | Calf Circ. | Footplate Length |
Calf Band Width |
|
---|---|---|---|---|---|---|---|
Left | Right | ||||||
Small | 3540 | 3545 | Size 6 or less | 12″ | 13½” | 6¼” | 8″ |
Medium | 3541 | 3546 | Men 5-7, Women 6 or less | 13½” | 14″ | 6¾” | 8″ |
Large | 3542 | 3547 | Men 7½-10, Women 6½ up | 14″ | 14½” | 7″ | 9″ |
X-Large | 3543 | 3548 | Men 10½-13 | 14″ | 15″ | 7″ | 9″ |
For replacement liners add .01 suffix, (e.g., 3620.01). Patient care instruction sheet included. Available custom-to-measurements.
