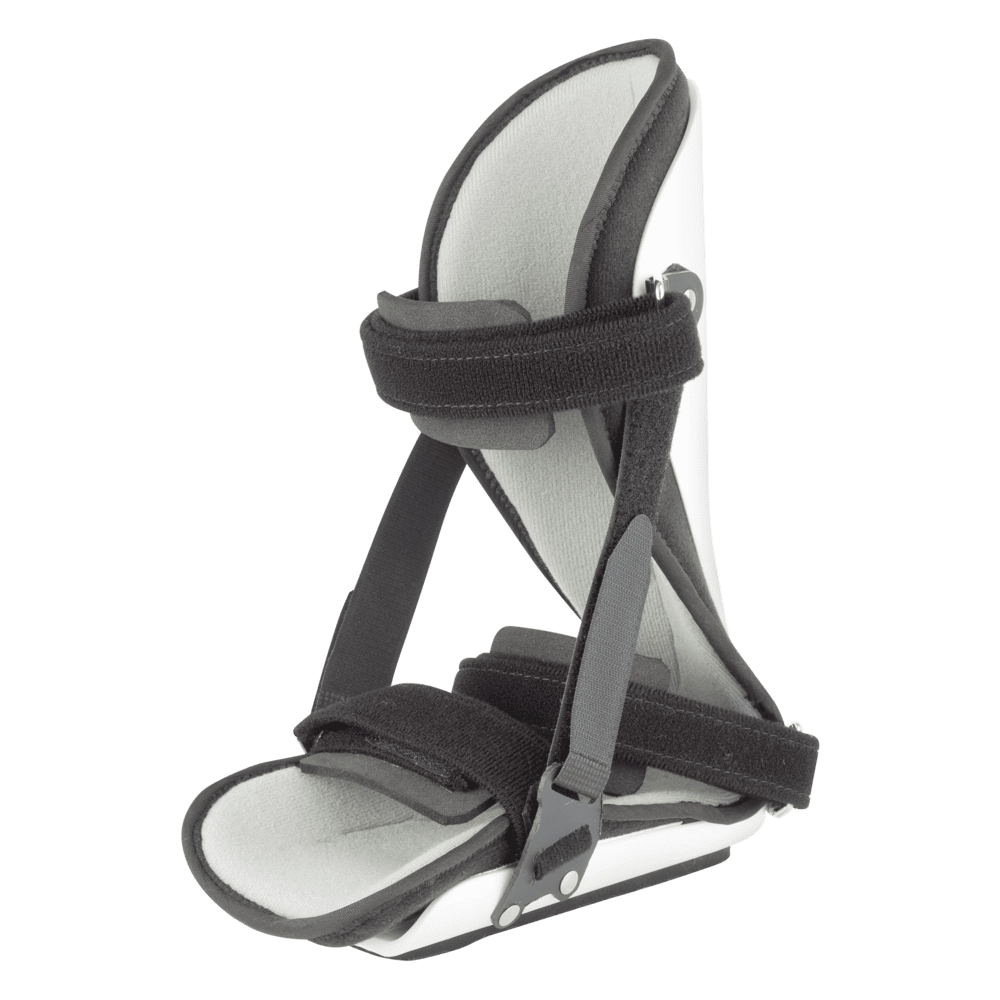

The Pediatric UFO is a comfortable, prefabricated orthosis for stretching and maintaining dorsiflexion range of motion. This unique lower limb orthosis positioning the foot and ankle in an optimal alignment for placing a varied amount of stretch on the soleus muscle while the patient is sleeping. When used in conjunction with a knee immobilizer, this orthosis can also stretch the two-joint gastrocnemius muscle group.
The unique design supports the affected foot and ankle in a varied amount of dorseiflexion, applying a low load prolonged stretch (LLPS) to the soft tissues of the plantar fascia and Achilles tendon. LLPS promotes gentle stretching, healing, and progressive remodeling of these tissues over time. The simple two-strap design allows the patient or family to easily adjust the amount of applied stretch to address both comfort and effectiveness.
• Lightweight, low profile outer shell
• Adjustable bilateral dorsiflexion assist straps
• Padded instep and proximal straps
• Comfortable overnight immobilization
• CoolFoam replaceable liner wicks moisture from the skin for enhanced hygiene
• Replacement liners can be ordered separately
• Non-skid pad included
• Three universal sizes – fits both left or right, minimizing inventory
• Standard model is white with black straps; limited transfer pattern options are also available
• Cerebral Palsy or other neuromuscular diseases
• Idiopathic toe walking
• Severs disease
• Tightness at the foot and ankle
• Following Achilles tendon lengthening
• Conditions needing nighttime immobilization
• Other lower extremity involvements
• Fixed ankle contractures
• Excessive swelling
| Size | Model # | Shoe Size | Brace Height | Calf Circ. | Footplate Length |
Calf Band Width |
|
|---|---|---|---|---|---|---|---|
| Left | Right | ||||||
| Small | 3540 | 3545 | Size 6 or less | 12″ | 13½” | 6¼” | 8″ |
| Medium | 3541 | 3546 | Men 5-7, Women 6 or less | 13½” | 14″ | 6¾” | 8″ |
| Large | 3542 | 3547 | Men 7½-10, Women 6½ up | 14″ | 14½” | 7″ | 9″ |
| X-Large | 3543 | 3548 | Men 10½-13 | 14″ | 15″ | 7″ | 9″ |
For replacement liners add .01 suffix, (e.g., 3614.01) Universal sizing fits right or left. For Purple Butterflies transfer pattern add .02 suffix. For Tornado transfer pattern add .03 suffix. Surcharge applies for all transfer patterns. White Co-Poly, Butterflies and Tornado transfers are stock items and available for same-day shipment. Other transfer options are subject to additional upcharge and require a two-day lead-time.
