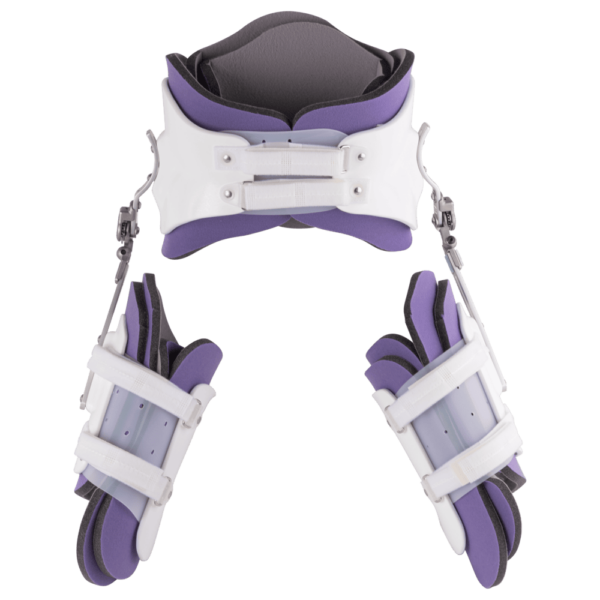

The Newport jr hip system enhances hip stability by supporting and positioning the hips in optimal alignments while allowing controlled range of motion. The Virtual pediatric joint is the smallest and lightest hip joint available and provides control of flexion, extension, abduction and adduction. This pediatric hip orthosis can be used post-operatively to maintain the corrected surgical position, or can be provided to maximize function during activities of daily living. Improved alignment through the hip encourages appropriate acetabular and femoral modeling, and reduces the tendency for subluxation and dislocation.
• Universal pelvic module, bilateral thigh cuffs, comfortable lumbar pad
• Anatomical design captures and stabilizes the pelvis
• Washable CoolfoamTM liners
• Available in five sizes
• Virtual Pediatric Joint (pj) w curved proximal joint attachments provide clearance over the incision and trochanter
• Post-operative stabilization of the pediatric hip
• Patients with subluxed hips who require better alignment to relieve pain
• Children needing improved sitting and standing balance
| Size | Model # | Waist Circ. | Hip Circ. | Mid Thigh Circ. | Trochanter to Knee Center Length |
pj Joint Distal Bar Size |
pj Joint Model # |
|
|---|---|---|---|---|---|---|---|---|
| X-Small | 3919 | 17 7/8-19″ | 18-20″ | 9 7/8-10 7/8″ | 7 1/4-8 1/2″ | Ex-short | 4310 | |
| Small | 3920 | 18 3/4-20 1/4″ | 20-22″ | 10 5/8-12 3/16″ | 8 1/8-10 1/8″ | Short | 4311 | |
| Medium | 3921 | 20-22″ | 22-25″ | 11 3/16-13 3/4″ | 9 1/2-11 7/8″ | Short | 4311 | |
| Large | 3922 | 21 3/4-23 3/4″ | 25-27″ | 12 3/4-15 3/16″ | 11 1/2-14″ | Long | 4312 | |
| X-Large | 3923 | 23 1/2-25 1/2″ | 27-30″ | 14-16 7/8″ | 13 7/8-16 3/8″ | Long | 4312 |
Add RL suffix to part numbers for replacement liner sets, (e.g., 3920RL is a complete liner set for the small Newport jr and 3940RL is a liner set for the small left Newport jr Thigh) Replacement liners available. Available unilateral too.
| Custom Hinge Components (Straight Bars) | |||
|---|---|---|---|
| Size | Model # | Joint Center To Proximal Bar |
Joint Center To End Of Distal Bar |
| Short | 4315 | 3 13/16″ | 7 13/16″ |
| Long | 4316 | 3 13/16″ | 10 15/16″ |
| Long–unslotted | 4317 | 5 5/16″ | 10 15/16″ |
| Pelvic and Thigh Components | |||
|---|---|---|---|
|
|
Thigh Assembly Model # | ||
| Size | Pelvic Assembly Model # |
Left | Right |
| X-Small | 3929 | 3939 | 3944 |
| Small | 3930 | 3940 | 3945 |
| Medium | 3931 | 3941 | 3946 |
| Large | 3932 | 3942 | 3947 |
| X-Large | 3933 | 3943 | 3948 |
| Optional Adjustable Abduction Bar | ||
|---|---|---|
| Size | Attached | Kit Only |
| Short (For XS and S Pelvic Sections–6.35″ to 9.85″ adjustment range) | 3950 | 3950.01 |
| Long (For M, L and XL Pelvic Sections–9.675″ to 17″ adjustment range) | 3951 | 3951.01 |
