Pediatric Hip Abduction Splints

Pediatric hip abduction splints

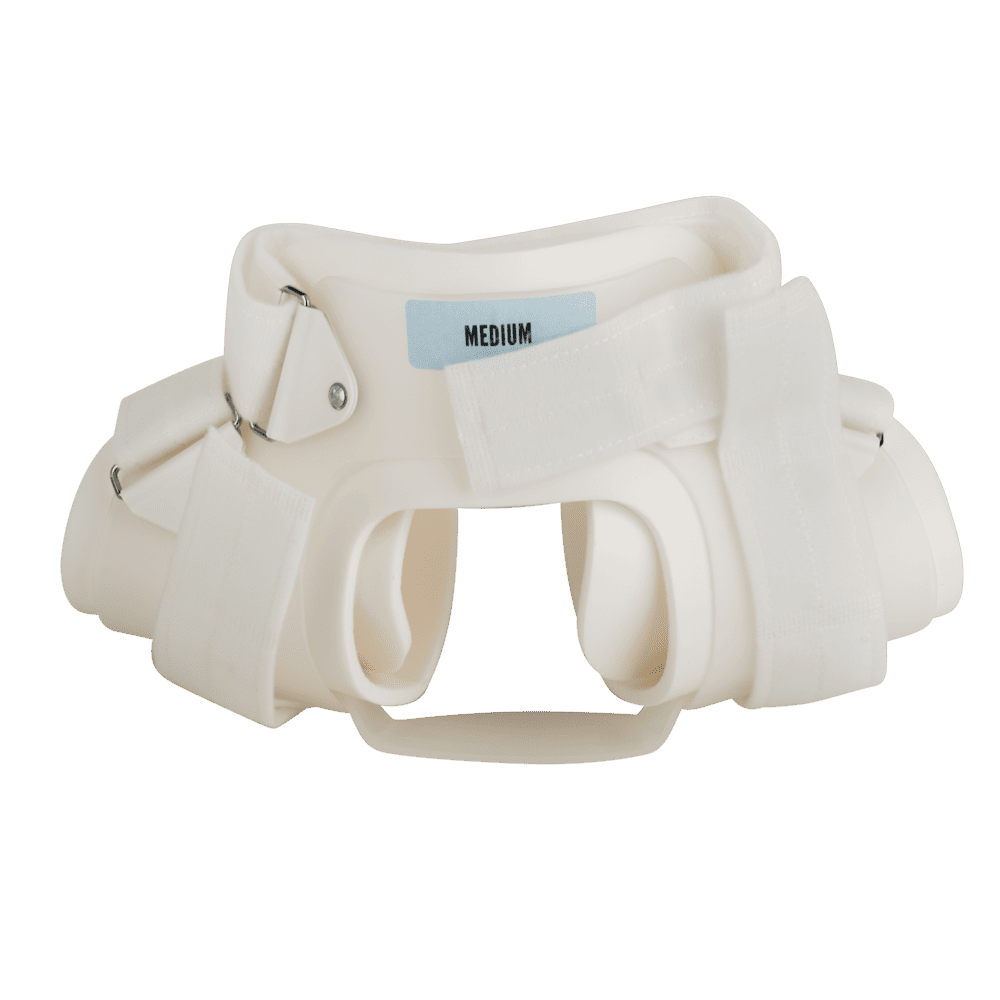

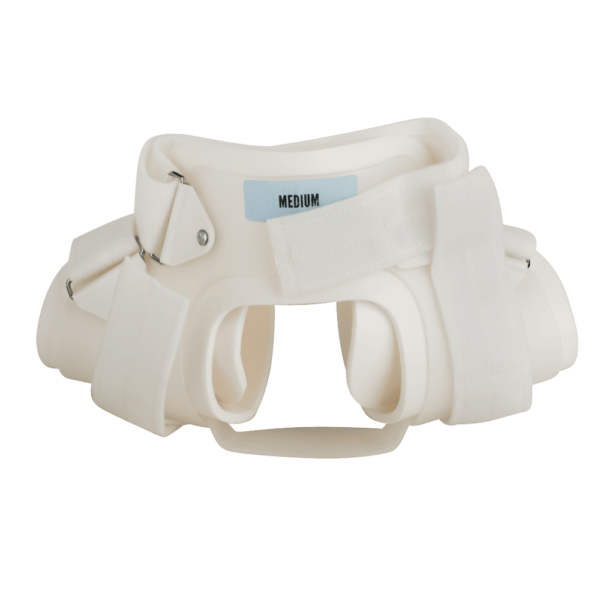

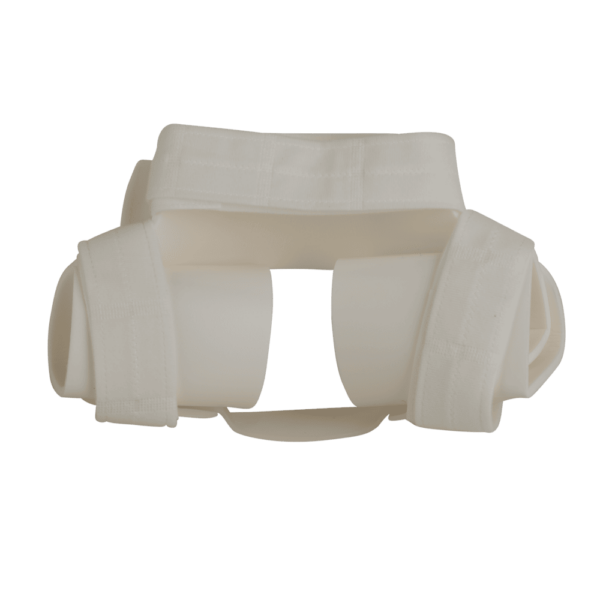

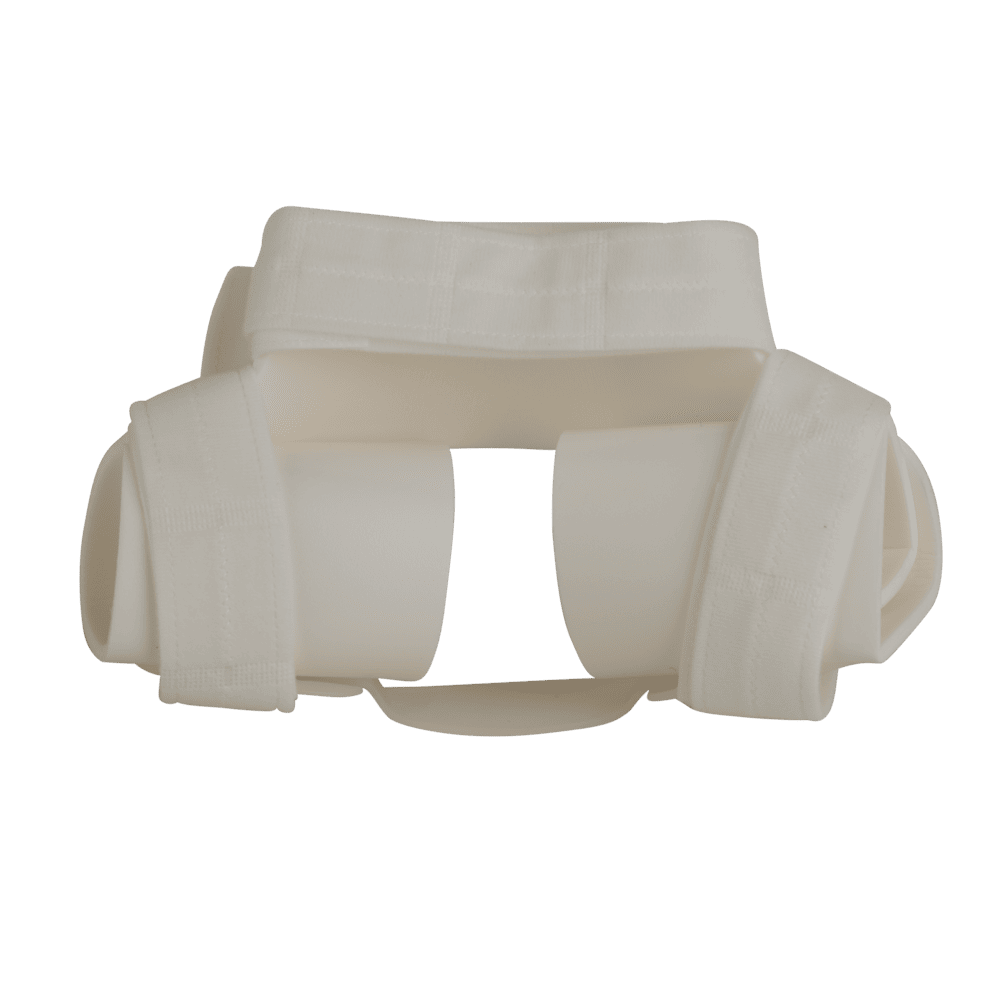

Pediatric Hip Abduction Splints maintain concentric reduction of hips in patients with hip dysplasia. This orthotic design replaces spica casts and harnesses for some presentations of neuromuscular and developmental hip dysplasia. The one-piece polypropylene orthosis holds the infant in 90 degrees of hip flexion and 60 degrees of hip abduction. The adjustable model offers easily adjustable abduction from 40 to 180 degrees. This abduction splint is available in five sizes and fits infants from 6 – 12 pounds and up to 18 months of age.

Features

• Sturdy plastic frame with closed cell foam liner
• Open design provides access for diaper changes
• Easy cleaning for improved hygiene

Indications

• Post-surgical hip support
• Congenital hip dysplasia
• Hip dysplasia in infants
• Developmental hip dislocation
• Pediatric hip joint instability
• Orthopedic hip alignment therapy
• Fulltime or nighttime use

Size Waist

Circ.

Thigh

Circ.

Adjustable

Model #

Standard

Model #

Age/Weight Guidelines
X-Small 3906 3899 Up to 3 mos. (6-12 lbs.)
Small 3907 3900 3-6 mos. (13-16 lbs.)
Medium 19″ 12″ 3908 3901 6-12 mos. (17-21 lbs.)
Large 21″ 15″ 3909 3902 1 year (22-30 lbs.)
X-Large 3910 3903 18 mos. (30+ lbs.)
