Newport® 3 Thigh Component

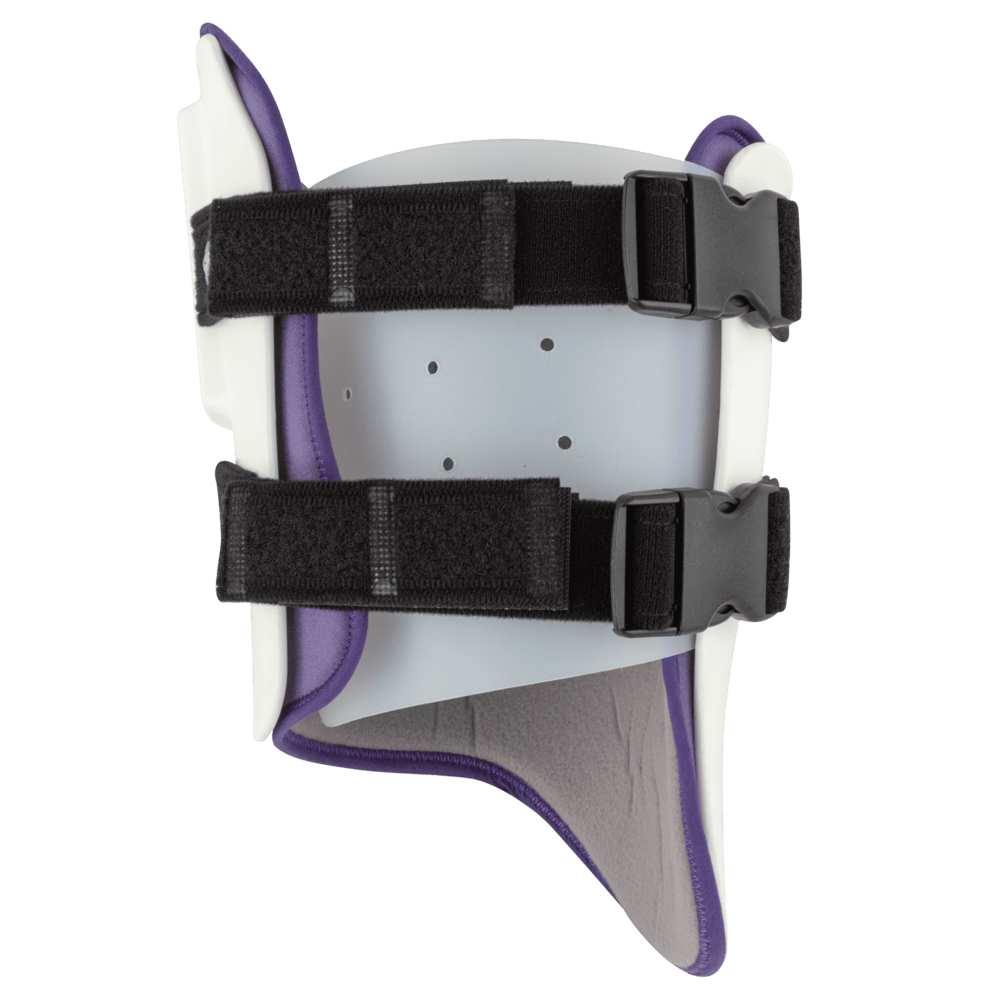

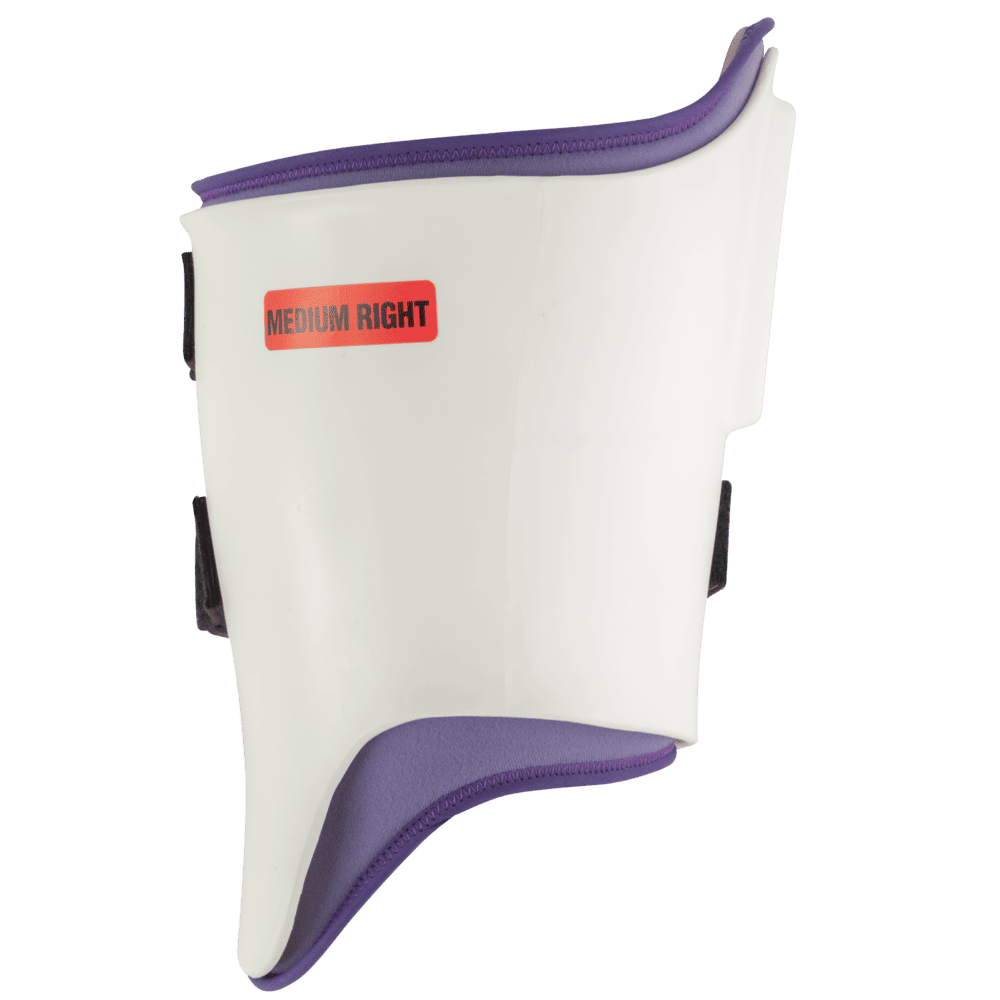

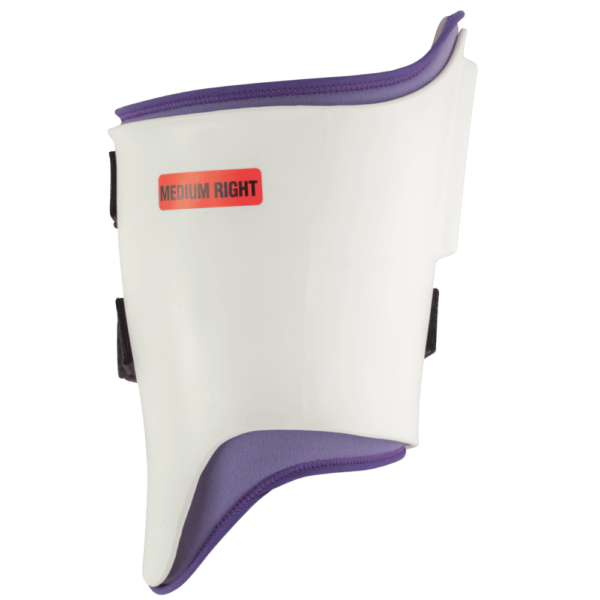

Newport 3 thigh component

The Newport 3 thigh component can be ordered separately as a replacement to an existing Newport 3 hip orthosis. The click and close fasteners are standard and chafe and loop closures are also available. CoolFoam liners are provided and replacements can be ordered for easy wear and care.

Features

• Simple click and close fasteners for easy application and removal (chafe and loop closures are also available)
* Replaceable liners for easy wear and care

Indications

• Post-operative hip revision patients
• Primary arthroplasty patients at risk to dislocate
• Patients needing stability after dislocation
• Inoperable patients requiring hip stabilization
• Patients who can benefit from a hip orthosis to reinforce hip precautions



Side-Specific Model # Universal Model #
Size Left Right Proximal Circ. Distal Circ. Mid. Thigh
X-Small 3769.05 3774.05 NA 11″-17″ 8″-13″ 10″-16″
Small 3770.05 3775.05 3770.01 15″-21″ 12″-17″ 13″-19″
Medium 3771.05 3776.05 3771.01 17″-24″ 13″-18″ 15″-21″
Large 3772.05 3777.05 3772.01 19″-27″ 14″-20″ 17″-24″
X-Large 3773.05 3778.05 3773.01 21″-29″ 17″-23″ 19″-26″

Special sizes available upon request (e.g., XXL, etc.) Extended hip joint Model #4264.05 recommended with Universal Thigh.

Replacement CoolFoam™ Liners
Left Right Universal
3819.05 3825.05 3820.04
3820.05 3826.05 3820.04
3821.05 3827.05 3821.04
3822.05 3828.05 3822.04
3823.05 3829.05 3823.04
