Tibial Fracture Brace

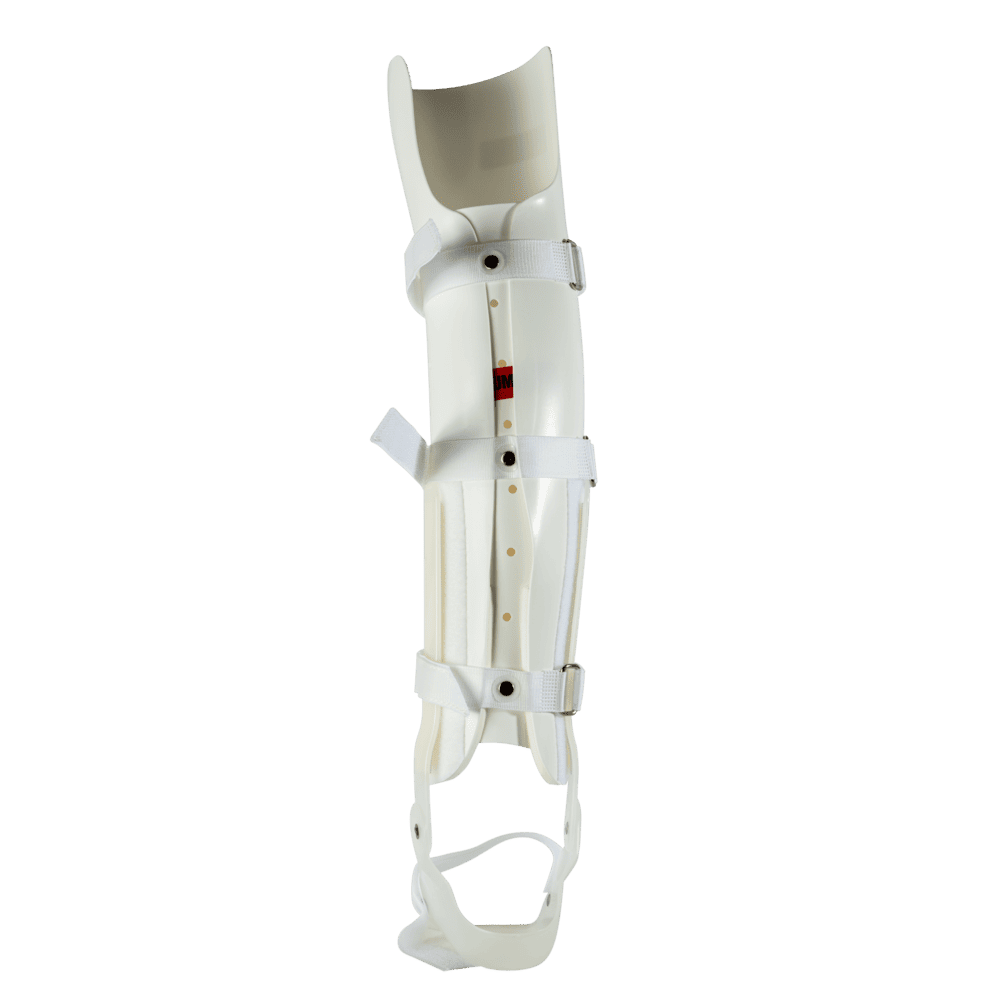

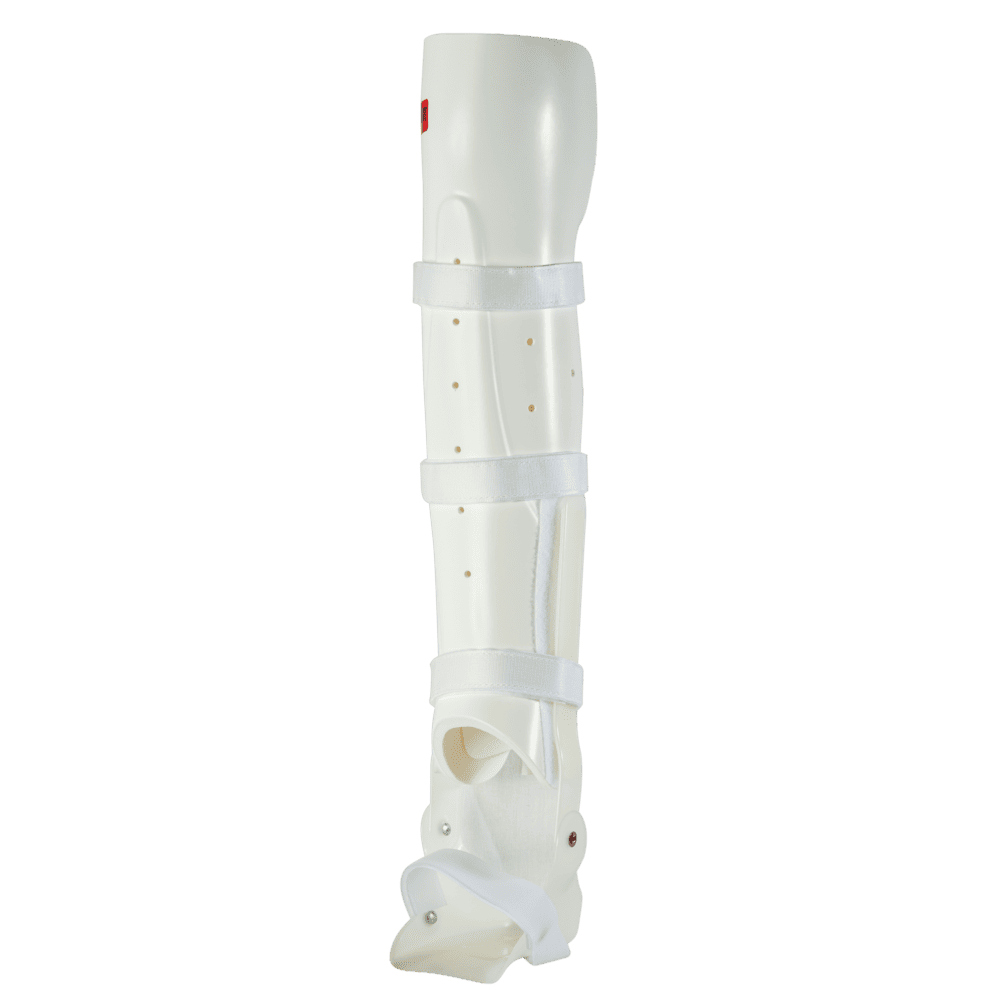

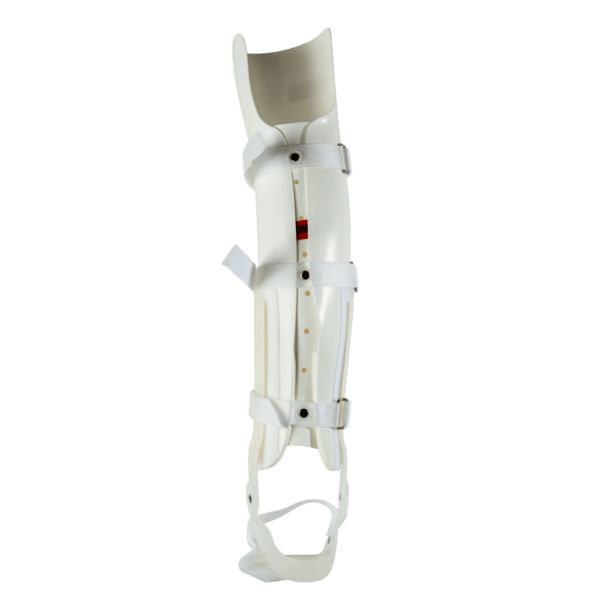

Tibial fracture brace with Sarmiento-type section

This prefabricated, molded foam lower leg orthosis was designed to provide extra support post-operatively, especially following intramedullary nailing of the tibia and following removal of external fixation devices. This design is especially useful when excessive soft tissue damage must be monitored. The plastic superstructure allows excellent quality x-rays, provides circumferential support and hydrostatic compression for early weight bearing to support orthopedic protocols. Modular shoe inserts are interchangeable.

Features

• Adjustable Velcro® straps accommodate volume changes
• Anterior opening facilitates soft tissue monitoring

Indications

• Effective following external fixator removal, intramedullary nailing

Complete Kit (with shoe insert) Calf Circ. (Bulge at Gastroc.) Ankle Circ. (Proximal to Malleoli) Leg Length (Superior Pole of Patella to Apex of Lateral Malleolus) Tibial section only
Size Left Right Left Right
Small 1730 1735 11″-13″ 8″-10″ 16½”-18½” 1550 1555
Medium 1731 1736 13″-15″ 9″-11″ 17½”-19½” 1551 1556
Med./Long 1732 1737 14″-16″ 9″-11″ 20½”-22½” 1552 1557
Large 1733 1738 15″-17″ 10″-12″ 19½”-21½” 1553 1558
Large/Long 1734 1739 16″-18″ 10″-12″ 22″-24″ 1554 1559

Includes 2 Tibial socks.
