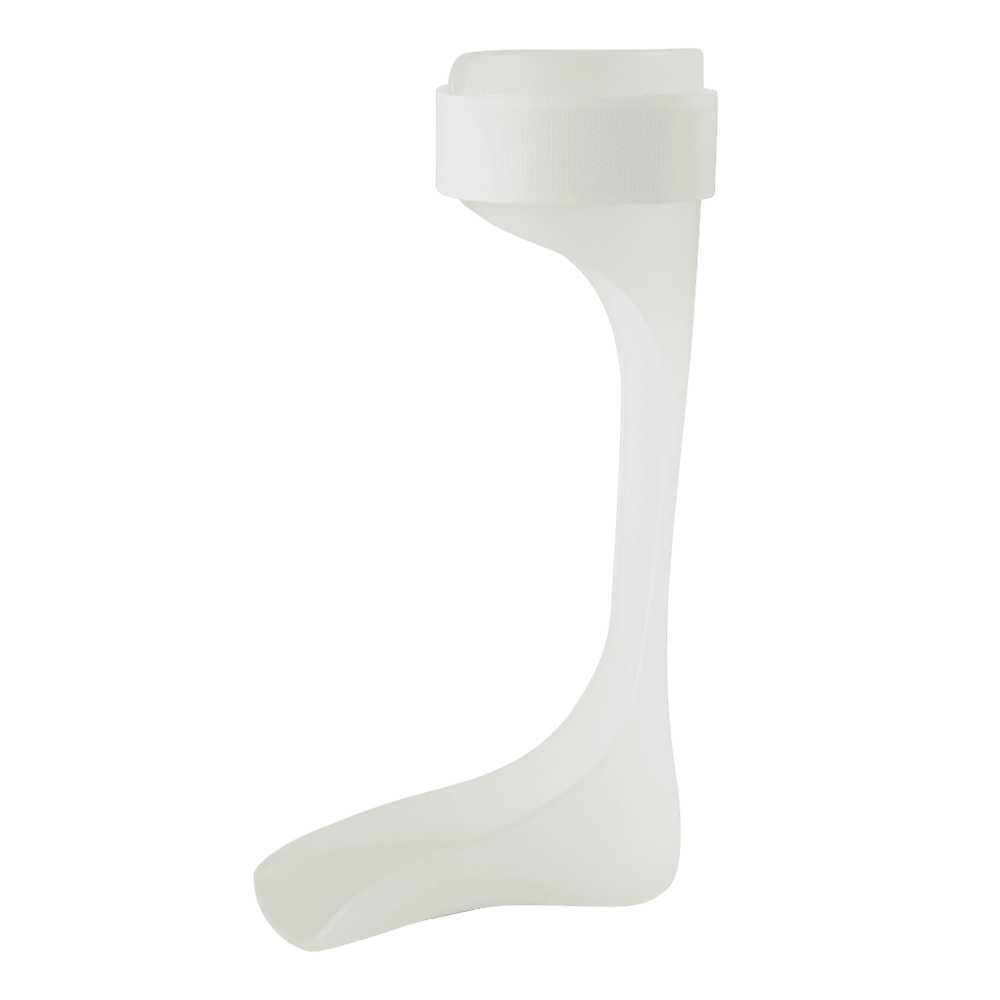

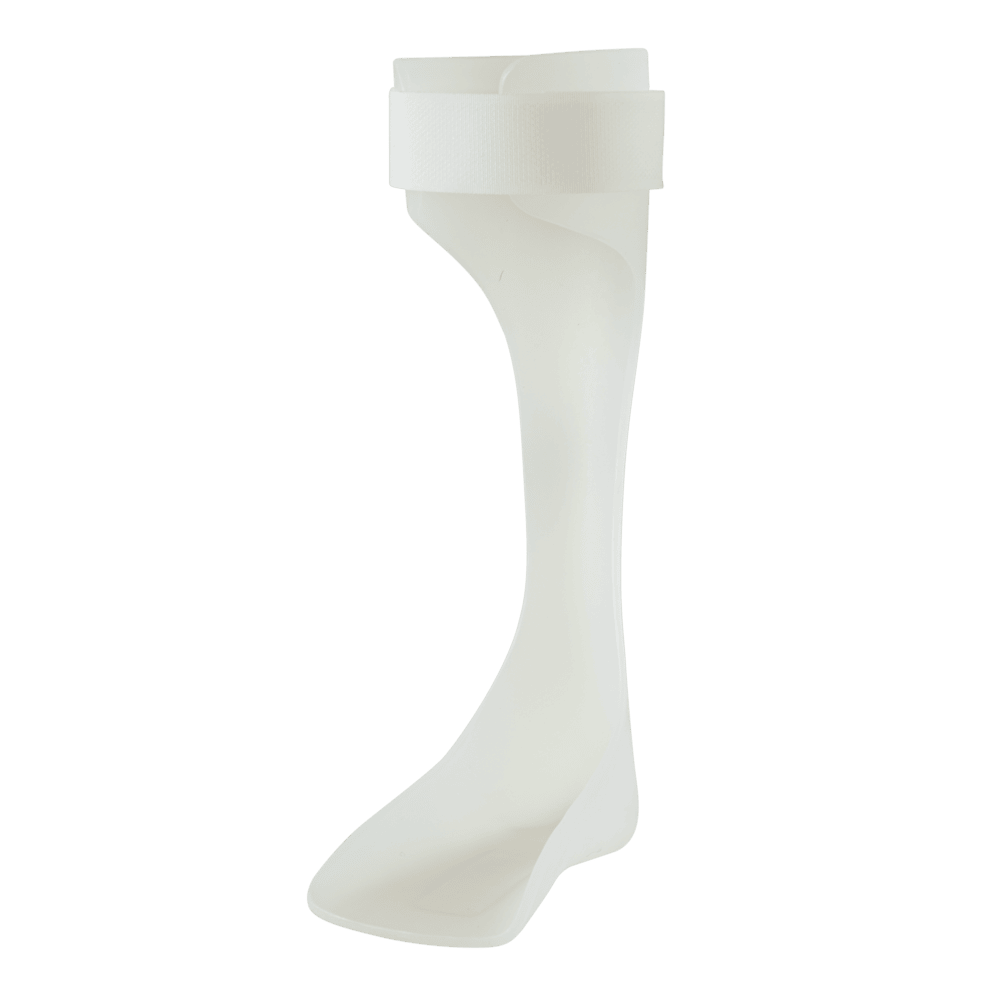

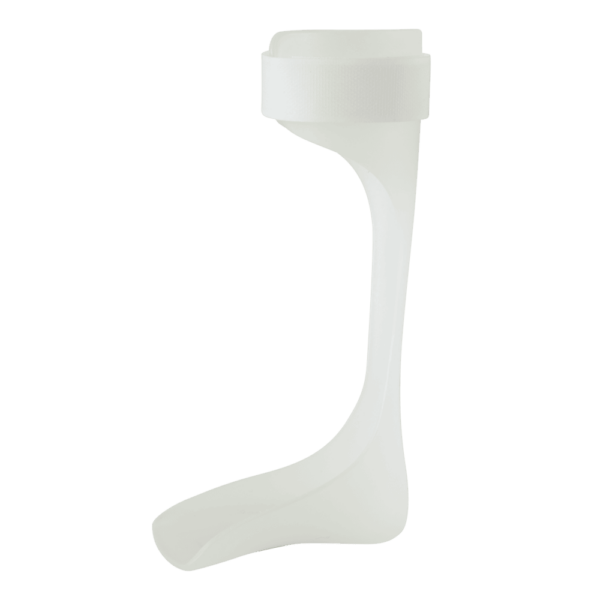

Prefabricated pediatric AFOs are often used for the prevention of equinous contractures and to enhance mobility for patients with spastic hemiplegia and diplegia. The leafspring design allows for a smoother gait pattern and the low-profile polypropylene fits easily into children’s lace up shoes. It is available in five sizes for boys and girls from 2 months to 6 years of age. With care, the plastic is easily heated for custom fitting to the patient to optimize patient care programs.
Refer to the sizing chart for specifications on calf circumference, foot length, and brace height. This AFO is also available as blanks (i.e., untrimmed, no strap) if more customization is needed.
• Pediatric sizes
• Durable and lightweight
• Low profile
• Fits easily into lace up shoes
• Proximal Velcro strap
• Pediatric patients
• Ankle and foot management
• Dorsiflexion assist during swing
• Plantarflexion resist during stance
• Dropfoot
• Medial-lateral ankle instability
• Mild to moderate spasticity
• Medial-lateral ankle instability
• Moderate to severe spasticity
• Moderate foot and ankle malalignment
• Very high or extreme activity (consider custom AFO)
| Size | Model # | Shoe Size | Brace Height | Calf Circ. | Footplate Length |
Calf Band Width |
|
|---|---|---|---|---|---|---|---|
| Left | Right | ||||||
| Small | 3540 | 3545 | Size 6 or less | 12″ | 13½” | 6¼” | 8″ |
| Medium | 3541 | 3546 | Men 5-7, Women 6 or less | 13½” | 14″ | 6¾” | 8″ |
| Large | 3542 | 3547 | Men 7½-10, Women 6½ up | 14″ | 14½” | 7″ | 9″ |
| X-Large | 3543 | 3548 | Men 10½-13 | 14″ | 15″ | 7″ | 9″ |
To order blanks (untrimmed), use same Model # with .01 suffix (e.g., 3581.01 etc.)
